2E Gaming Air Cool
ACF120B
SKU: 2E-ACF120B

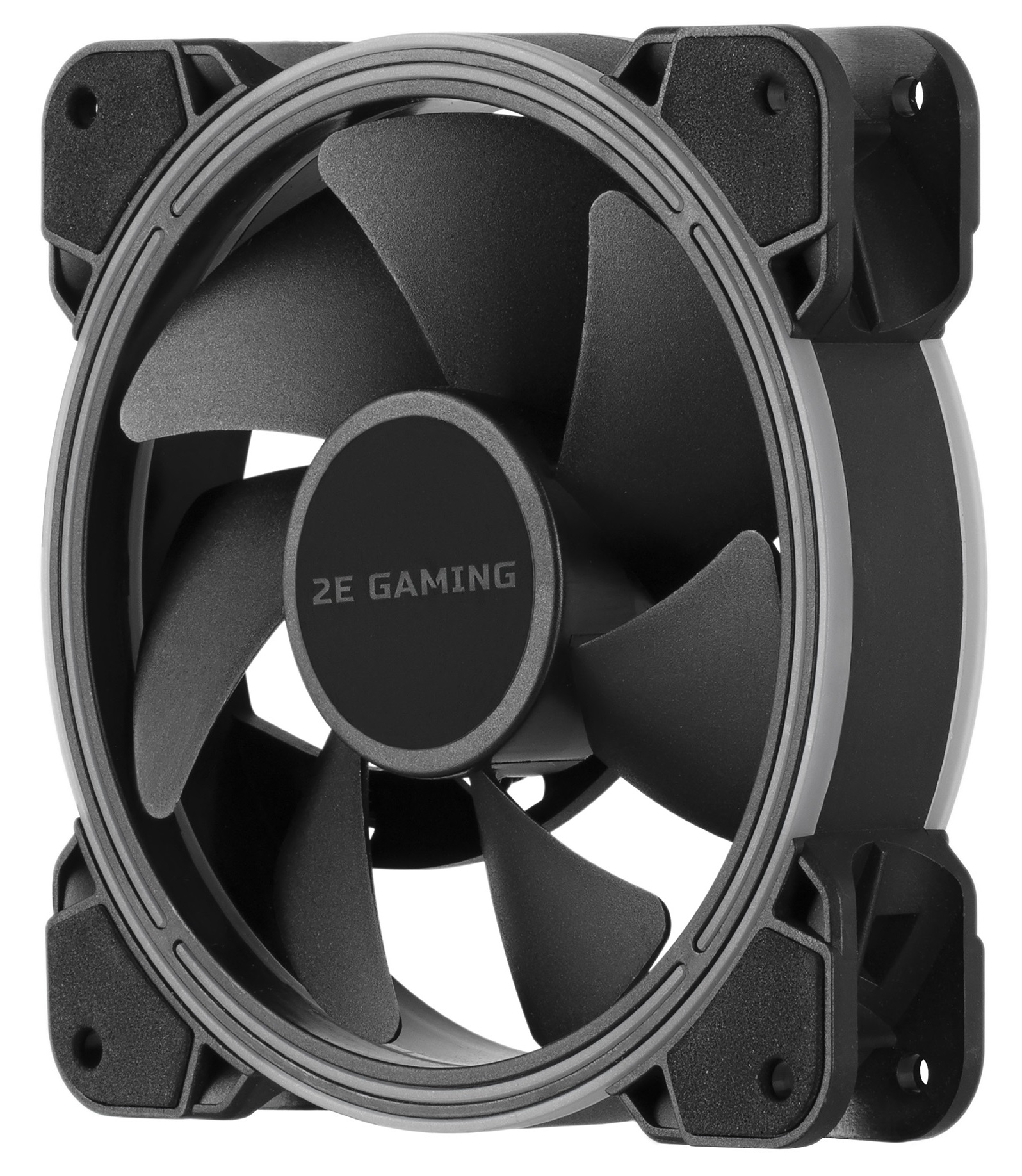

Classic 120mm Molex 4PIN + 2510-3PIN fan with black blades, no lighting. There are anti-vibration pads on four sides. Modern EVA pad material is elastic and resistant to various loads, does not deform when heated and dampens vibration. Hydraulic bearing fan works quietly at the maximum speed of 1300+/-10% rpm.
Out of stock
190₴
Manuals
01
Anti-vibration EVA pads
The modern material of the pads does not deform when heated, minimize vibration, is elastic and resistant to various loads.
02
Quiet fan 24.8 +/- 10% dBA

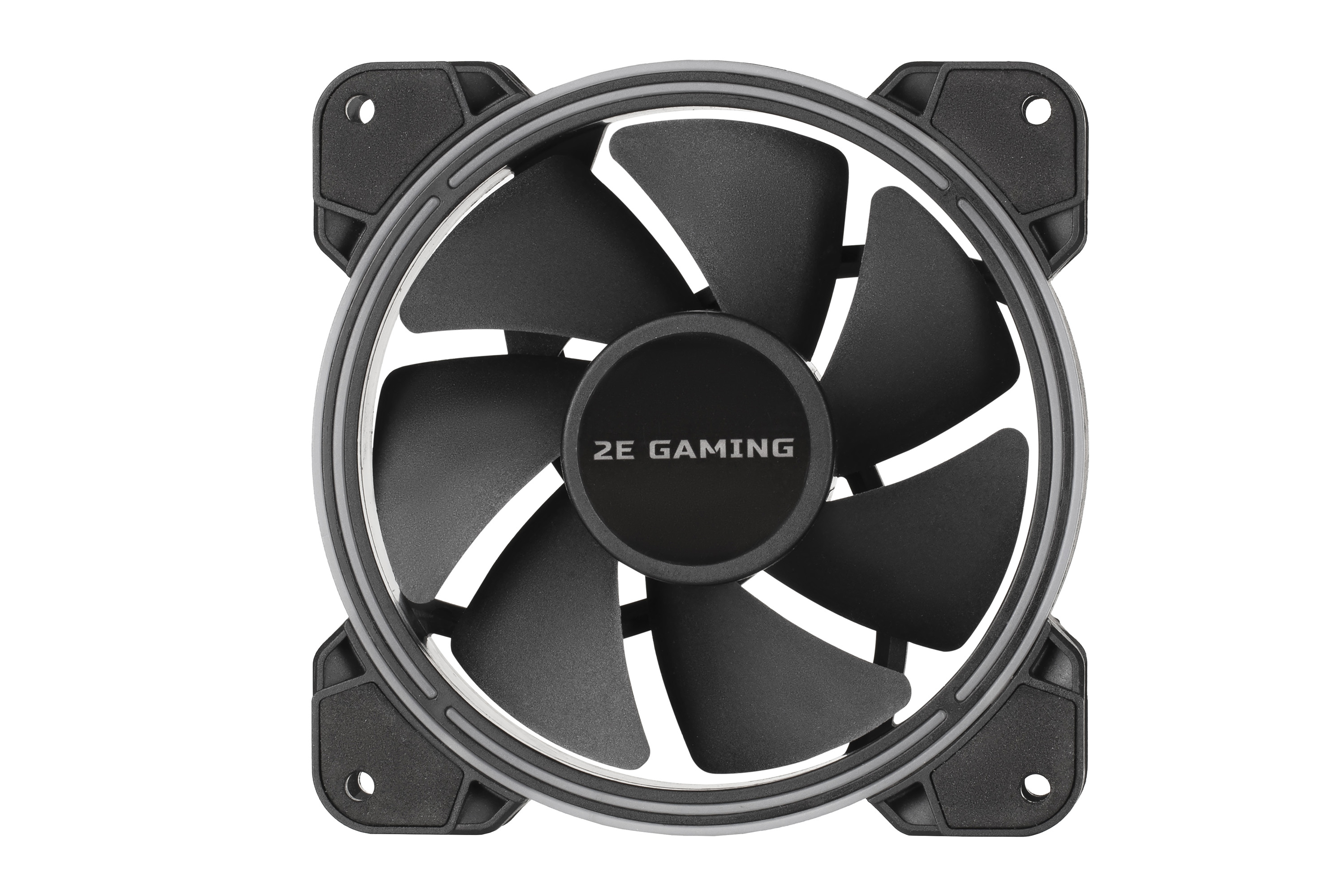

The 120mm fan has seven blades and a rotational speed of 1300 +/- 10% rpm.
03
Fan hydraulic bearing
Provides stable and quiet operation, does not overheat under high loads.
04
Classic connection and installation

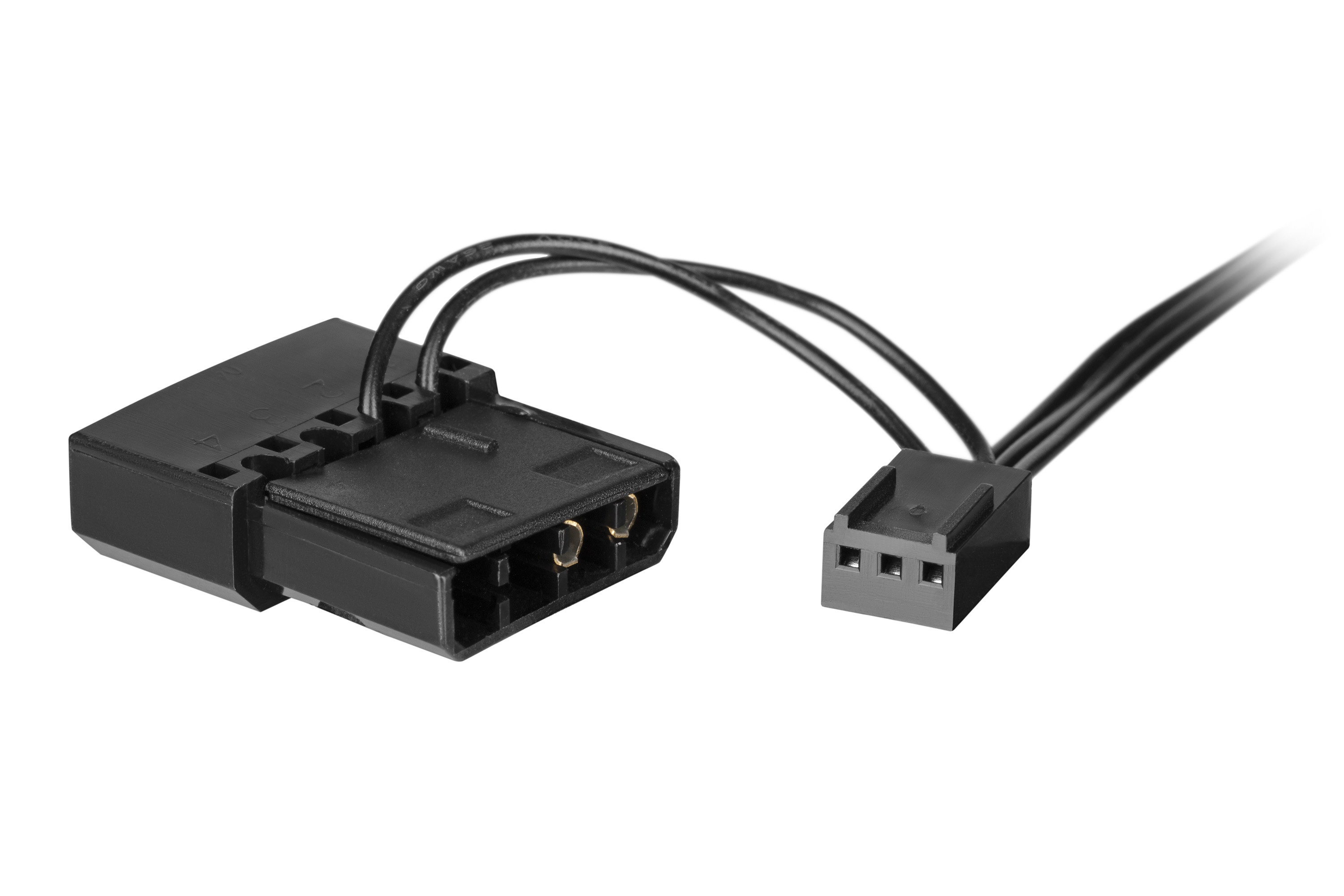

Connection: Molex 4PIN + 2510-3PIN. The scope of the delivery includes user manual and a set of screws required to install the fan into the case.
- Anti-vibration EVA pads
- Hydraulic bearing
- Robust and reliable frame
2E Gaming Air Cool ACF120B 2E-ACF120B:
Specifications
-
TypeFan
-
AppointmentFor PC Case
-

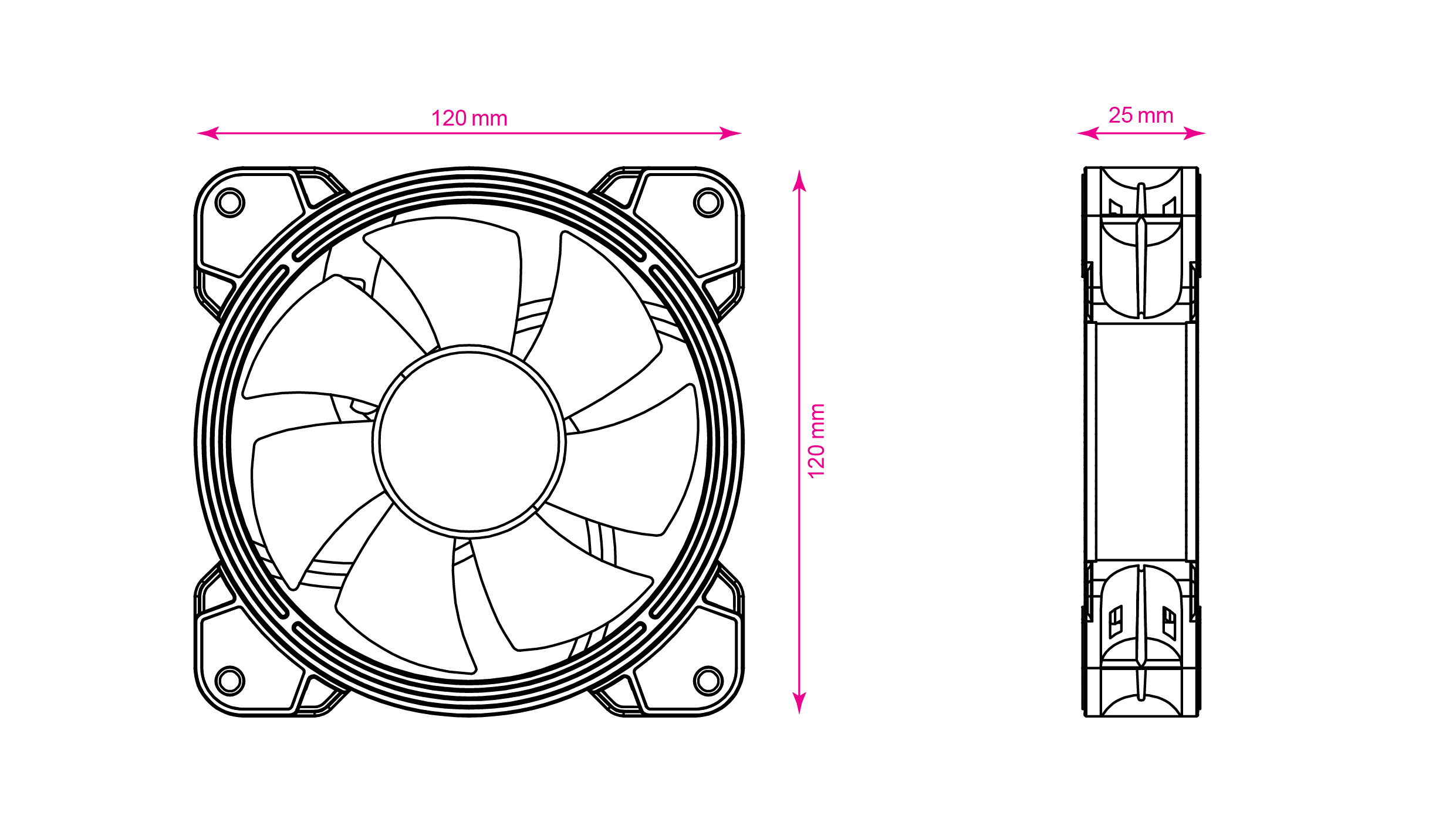

Fan dimensions, mm120x120x25
-
Fan productivity38.5+/-10% CFM
-
Speed, rpm1300+/-10%
-
Static pressure0.79+/-10% mm/H2O
-
Noise level, dB24.8+/-10%
-
Bearing typeHydraulic
-
ConnectorMolex 4PIN+2510-3PIN
-
PWMNo
-
Number of blades, pcs7
-
Blades colorBlack
-
Wire length outside the frame, mm>450
-
Power Supply, V12
-
Rated current, A0.18
-
BacklightNon
-
MTBF, h40 000
-
Anti-vibration pad materialEVA
-

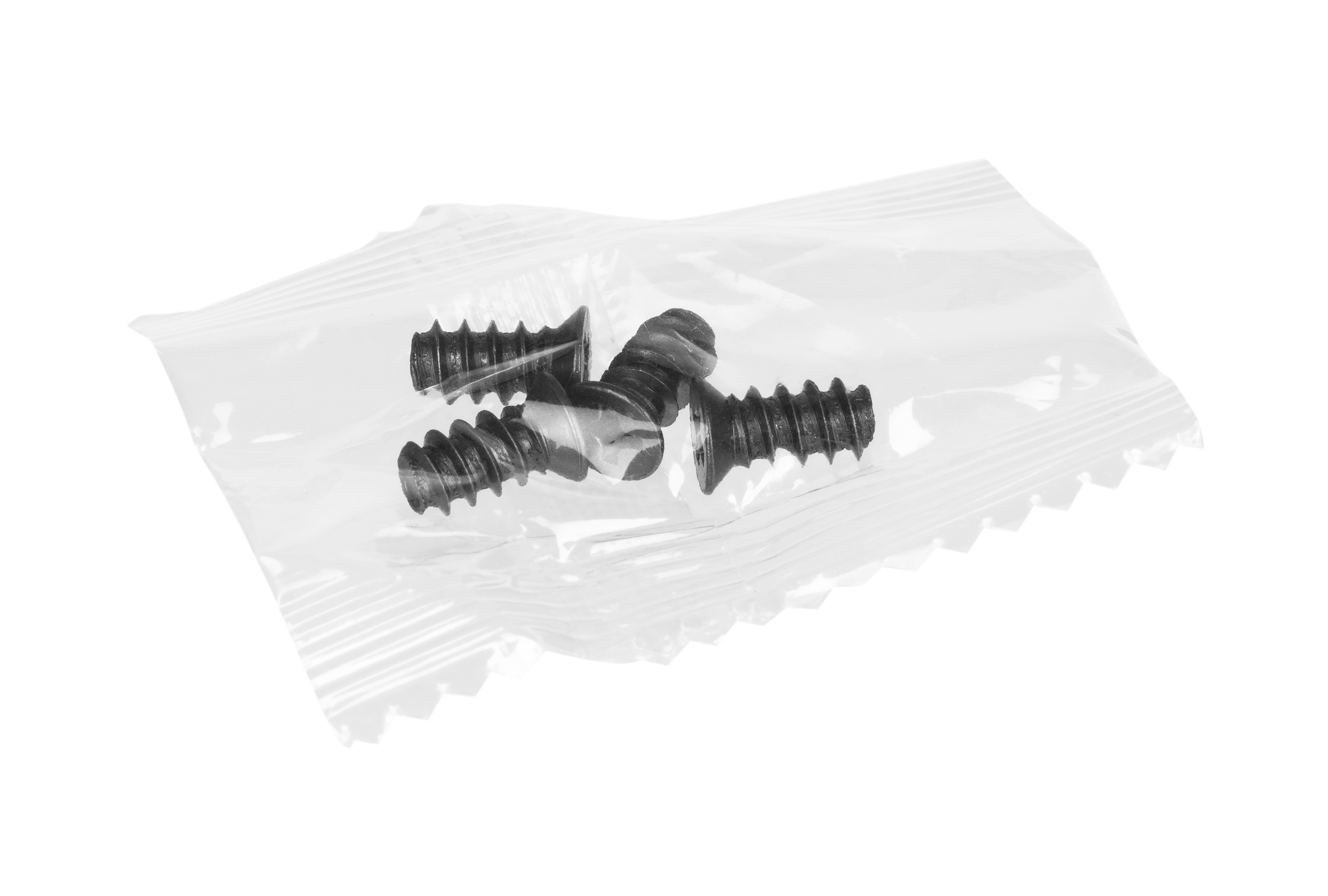

Package contentsCase fans, screws for fixing x 4 pcs, manual, warranty card
-
ManufacturedChina
-
Warranty12 months
