2E Gaming Air Cool

ACM90D4
New
SKU: 2E-ACM90D4

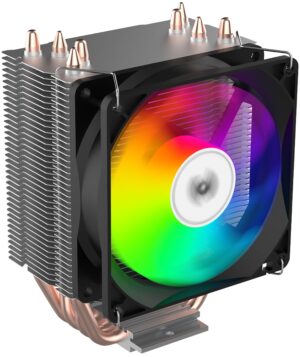

CPU cooler 2E Gaming Air Cool ACM90D4 with ARGB high-end decor lighting, 90mm hydraulic bearing fan built into the classic tower design of the radiator. Aluminum heatsink with four 6mm copper heat pipes placed at a certain distance, which improves cooling efficiency and affects the distribution of airflow. The surface of the heatsink is coated with a special black coating with ceramic inclusions, which improves cooling efficiency while guaranteeing a TDP of 180W. Cooler ACM90D4 with polished base surface. Direct contact of the heat pipes with the processor using DTH technology improves heat dissipation.
Out of stock
1449₴


Manuals
01

Compatible with modern sockets

Convenient mounting. Easy to install and remove.
INTEL LGA: 115X/1200/1366/1700
AMD: FM1/FM2/AM2/AM2+/AM3/AM3+/AM4
02

Compact size and efficient cooling

Height: 135mm. The construction does not interfere with system components located on the motherboard. CPU surface heat dissipation rate: 180W.
03

Classic tower heatsink and DTH base design

The compact tower shape of the aluminum heatsink with a special black coating containing ceramic particles for active heat dissipation provides effective cooling. Four 6mm copper heatpipes are placed directly on the surface of the base using DTH (Direct Touch Hitpipes) technology.
04

Built-in 90mm fan

90mm fan with a speed of 800-2400+/-10% rpm for active heat dissipation from the heatsink surface. The hydraulic bearing of the fan ensures stable and quiet operation, does not overheat at high loads.
05

Quiet 28dBA fan

Connector: 2510-4pin.
06

Stylish ARGB lighting of the upper decorative segment

Connector: + 5V 3pin RGB Aura + Molex 4pin.
07

CPU cooler design and mounting kit

  • Built-in quiet 90mm hydraulic bearing fan
  • Base made using DTH (Direct Touch Hitpipes) technology
  • 4x6mm black coated copper heatpipes
  • ARGB lighting of the upper decorative segment
  • Compact aluminum heatsink with black coating
  • Convenient mounting

2E Gaming Air Cool ACM90D4 2E-ACM90D4:

Specifications
  • Type
    Active cooler
  • Appointment
    For processor
  • Radiator dimensions, mm
    112x92x135
  • Fan dimensions, mm
    92x92x25
  • Fan productivity
    40.5 CFM
  • Speed, rpm
    800-2400+/-10%
  • Static pressure
    2.51 mm/H2O
  • Noise level, dB
    28
  • Bearing type
    Hydraulic
  • Connector
    2510-4PIN/+5V 3PIN RGB Aura with Molex 4PIN
  • PWM
    Yes
  • Radiator material
    Aluminium
  • Number of heat pipes, pcs
    4 (6 mm)
  • Power Supply, V
    12
  • Rated current, A
    0.11
  • Backlight
    ARGB
  • LGA
    115X/1200/1366/1700
  • AMD
    FM1/FM2/AM2/AM2+/AM3/AM3+/AM4
  • TDP, W
    180
  • Package contents
    CPU cooling system, fan, installation kit, thermal grease, manual, warranty card
  • Dimensions (WxHxD), mm
    112x135x92
  • Manufactured
    China
  • Warranty
    12 months
