2E Gaming
Power Supply
SOLID Power Pro
SP850BRSMII-120

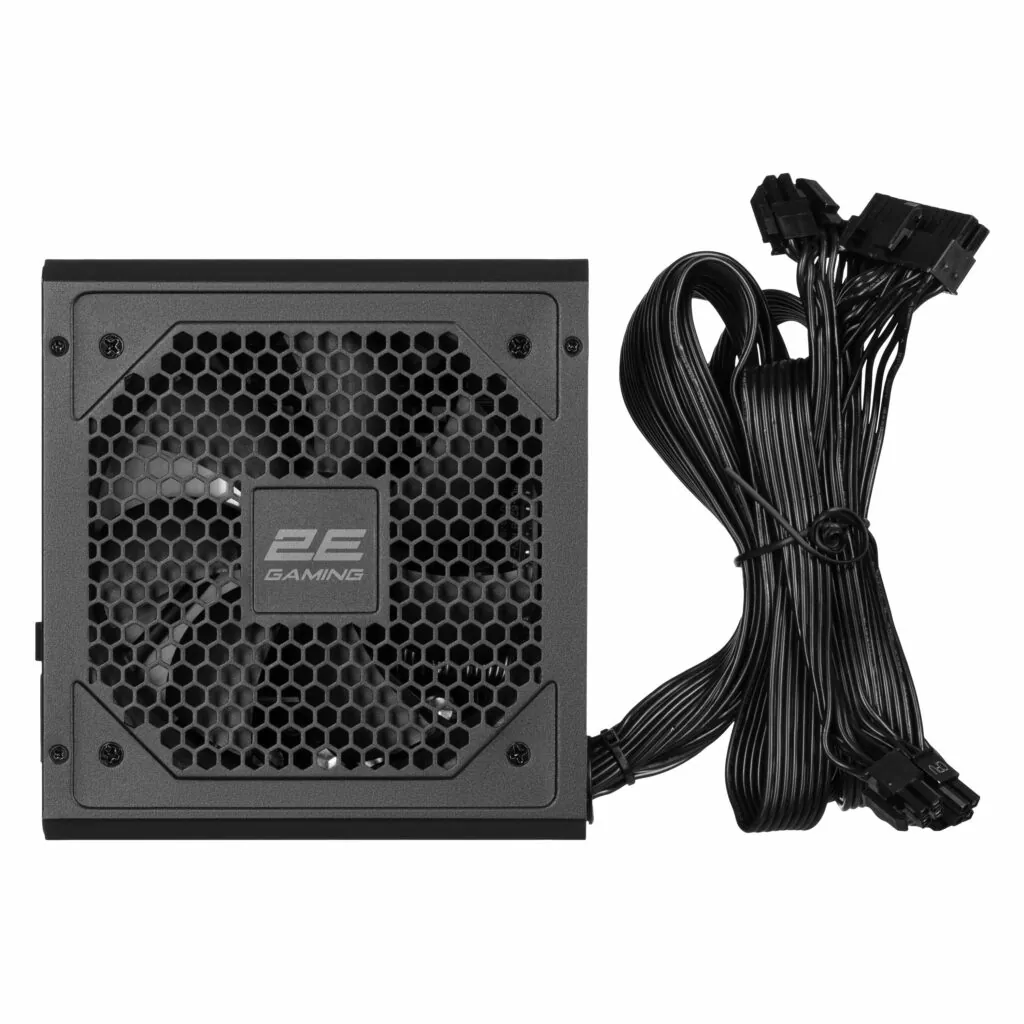

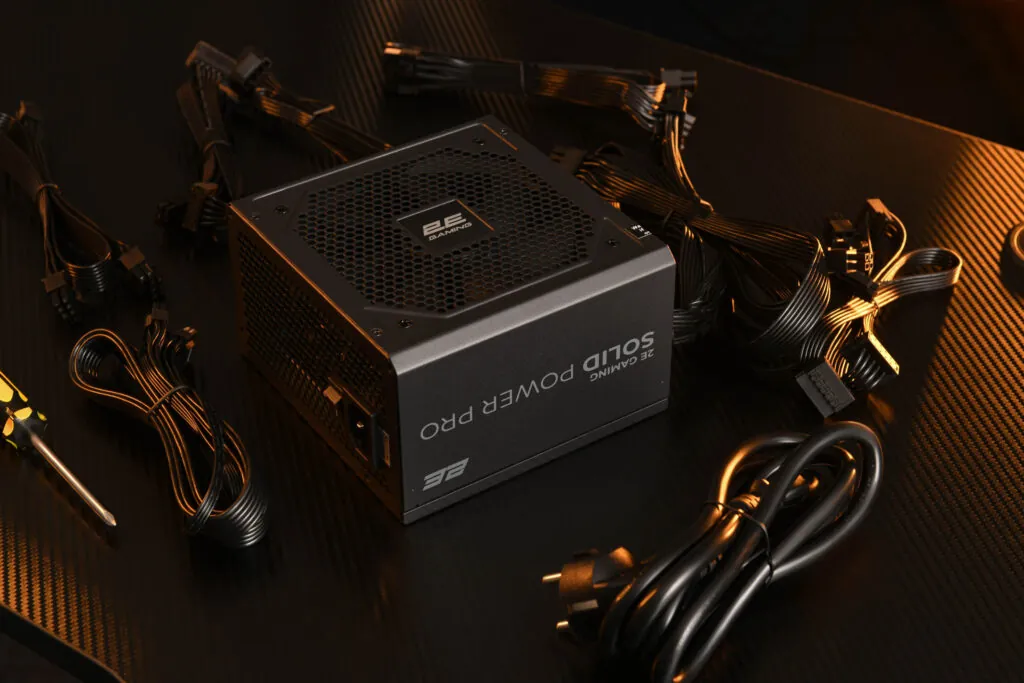

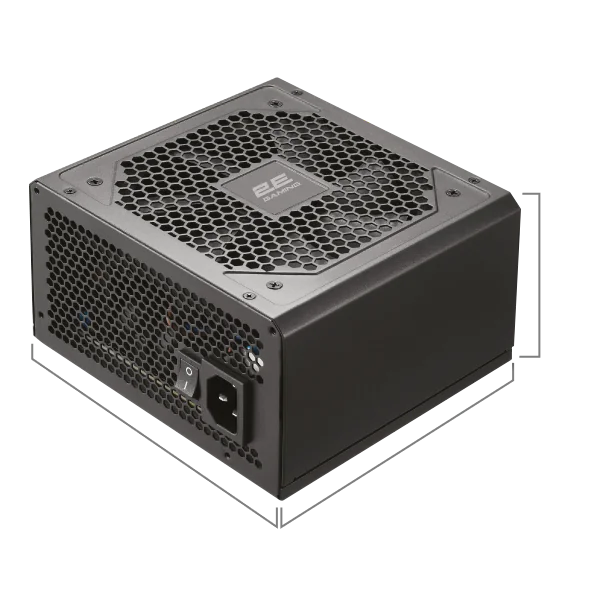

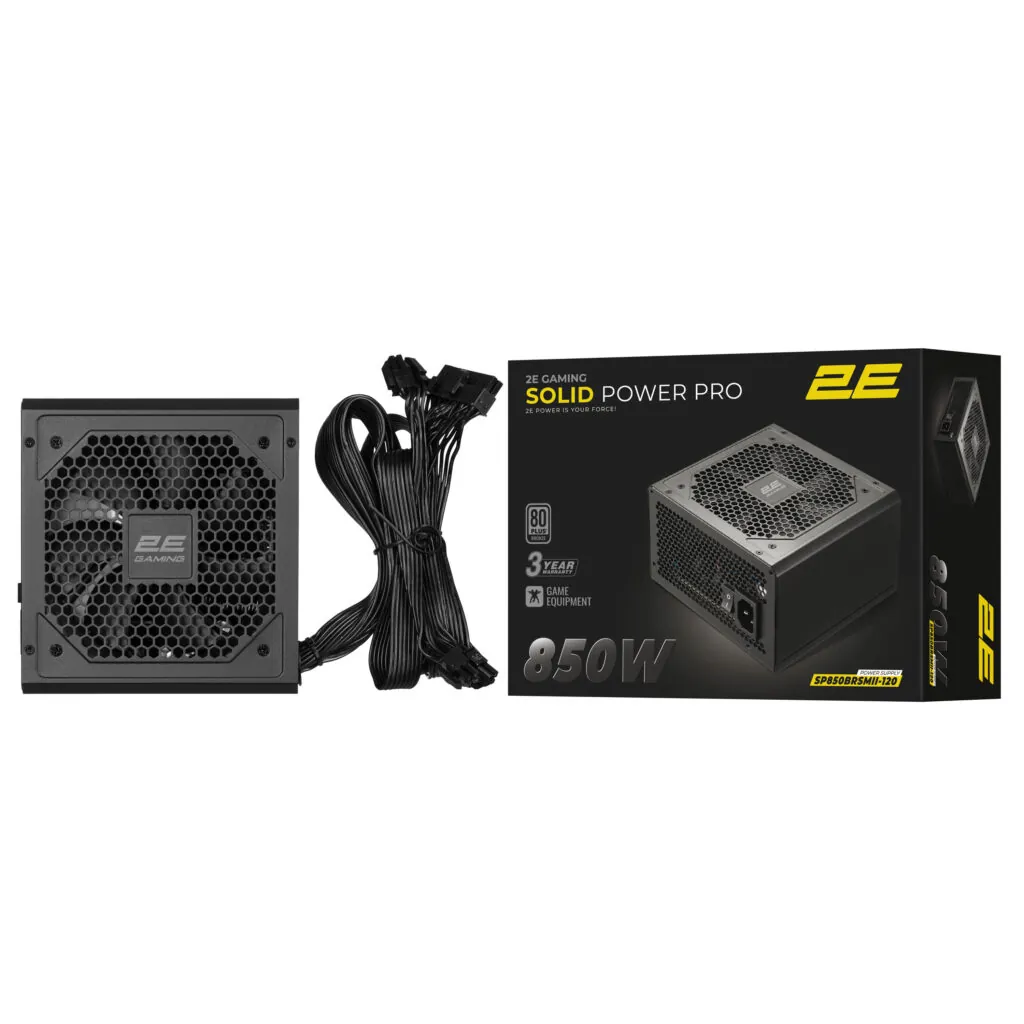

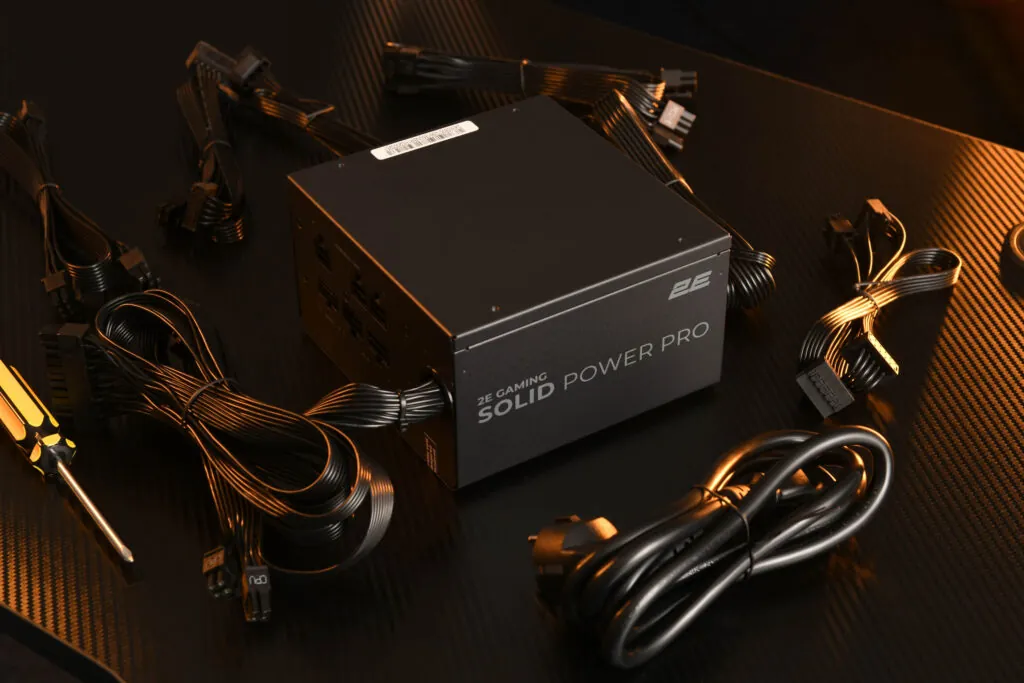

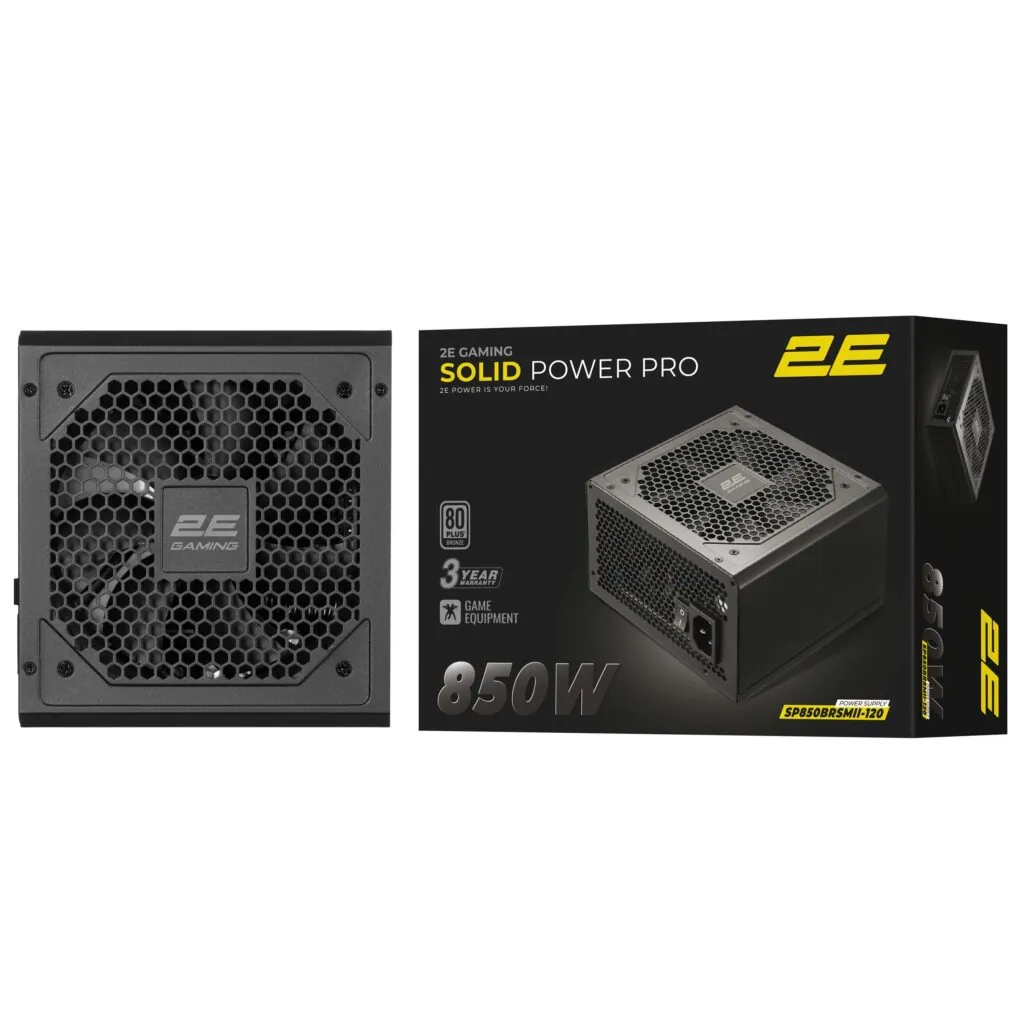

2E Gaming Power Supply SOLID Power Pro SP850BRSMII-120 2E-SP850BRSMII-120:
Specifications
Where to buy
- TypePower Supply
- Form FactorATX
- ModularSemi modular
- Input voltage, V200-240
- Input current, A10
- Frequency, Hz50

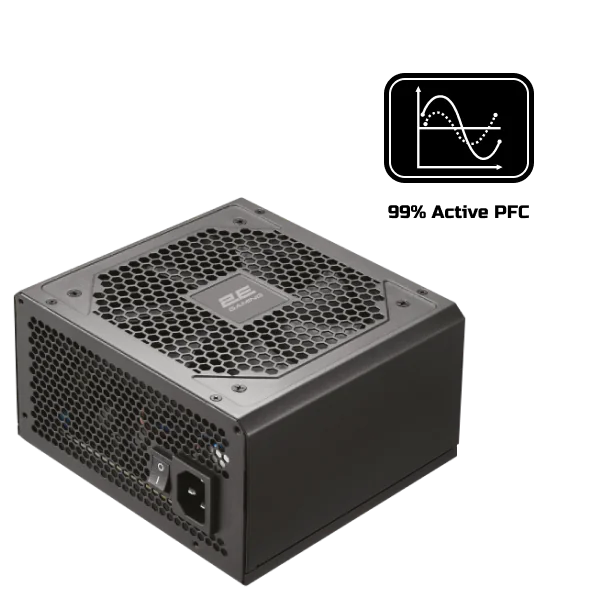

- PFCActive

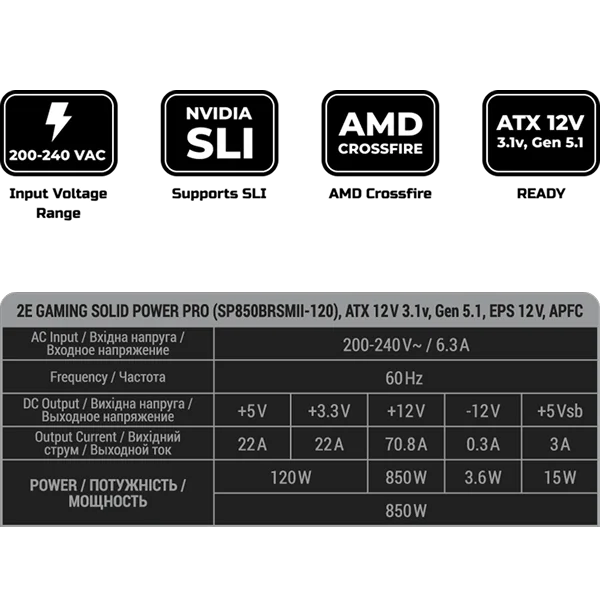

- Line load3,3V 22A; +5V 22A; +12V 70,8A, -12V 0,3A; +5VSB 3A
- Еfficiency>85%
- ProtectionOCP, OVP, OPP, SCP, UVP
- Output power, W850
- CertificatesCE, CB, RoHS, EAC

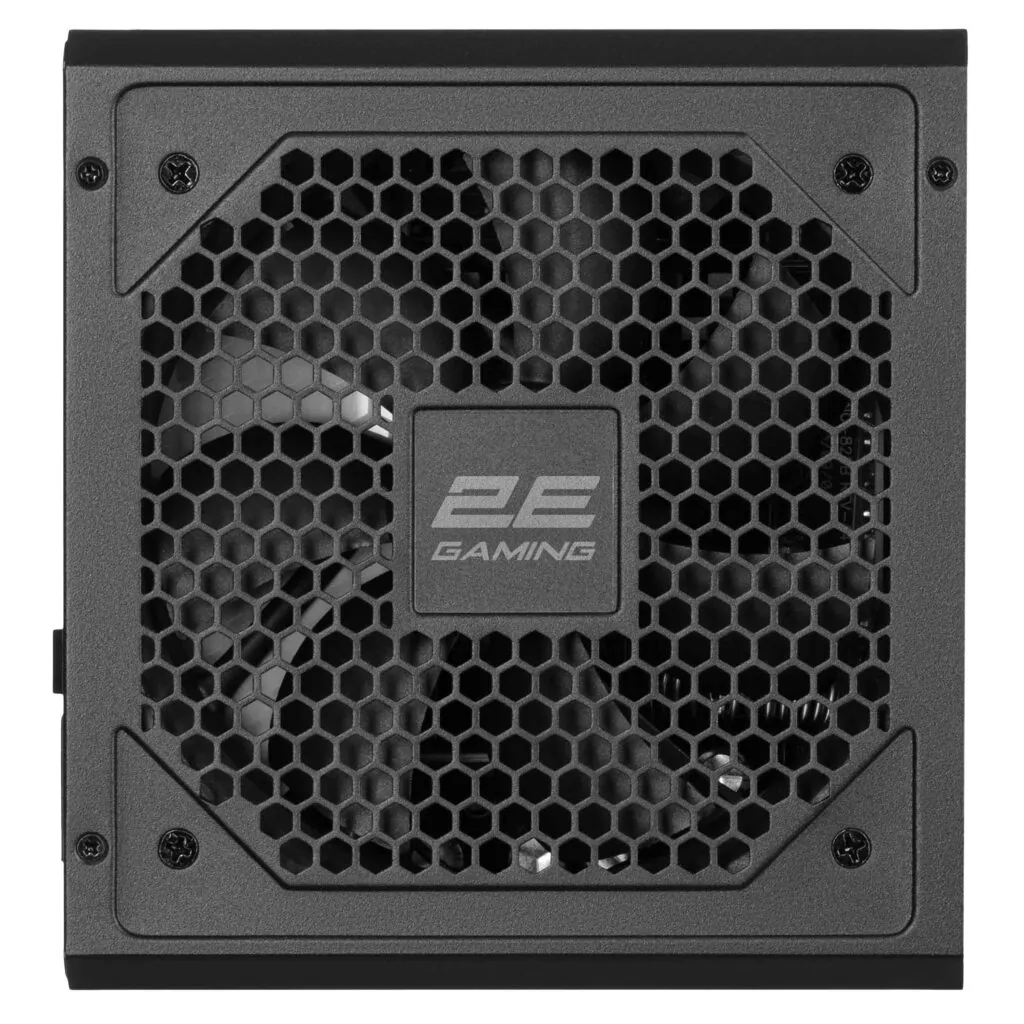

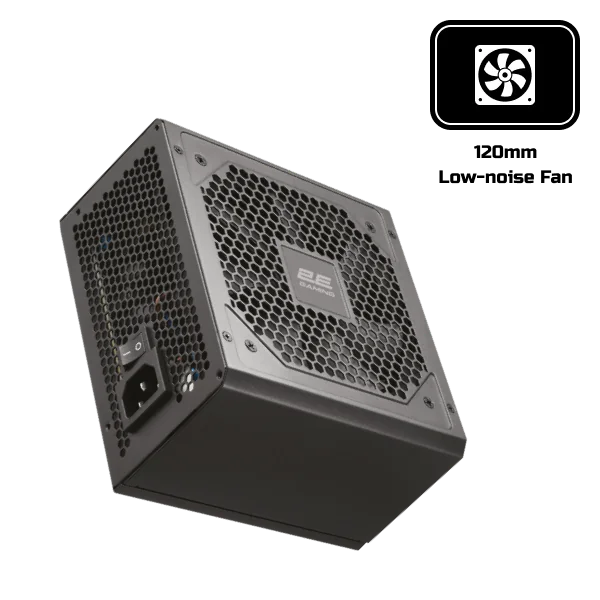

- Fan size, mm120

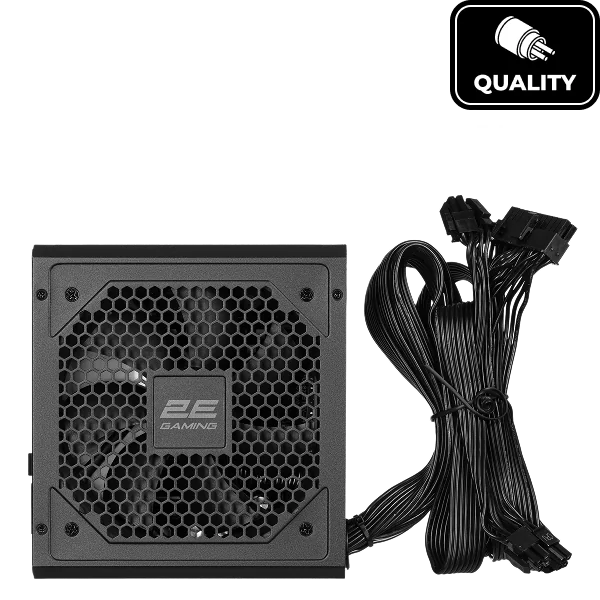

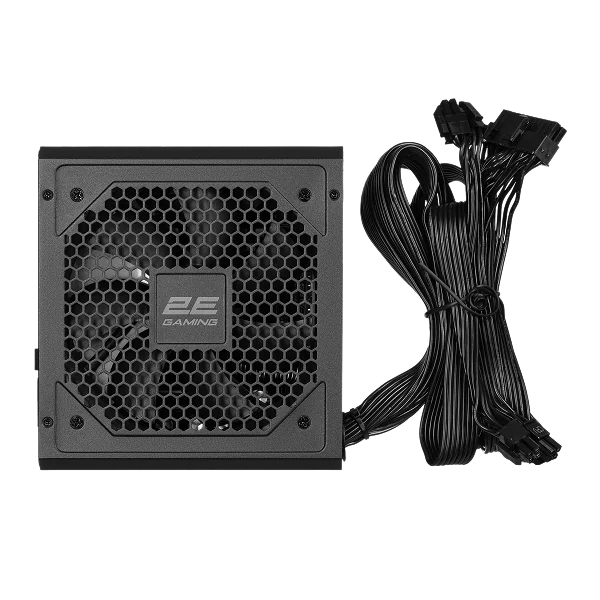

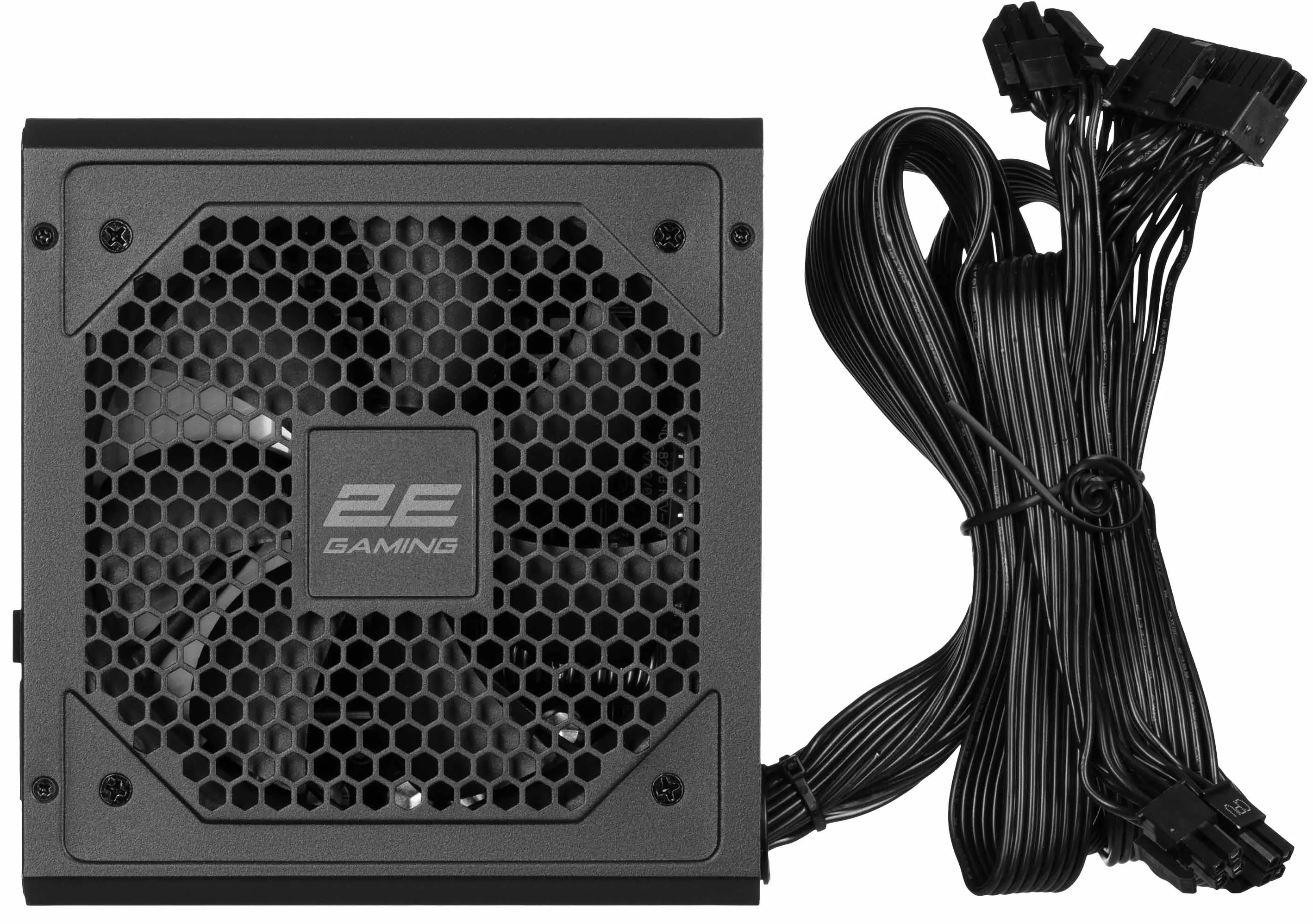

- Connectors1xMB 24(20+4) pin, 550mm, 2xCPU 8(4+4) pin, 600+150mm, 4xPCI-E 8(6+2) pin, (500+150mm)*2 modular, 1x12+4 Pin PCI-E Gen 5.1 600mm, 6xSATA, (400+150+150mm)*2 modular, 3xMolex, 400+150+150mm modular
- 80 PLUS CertificateBronze
- Power cable, m1.2/EU
- Dimensions (WxHxD), mm140x86x150
- Weight, kg2.23
- ManufacturedChina
- Warranty36 months
