2E Gaming
Power Supply
SOLID Power
SP650BRSM-120
New
SKU: 2E-SP650BRSM-120
2E GAMING Solid Power (650W) power supply features semi-modular connection cables for progressive computer systems of medium and higher complexity. Modern circuitry based on DC-DC converters and a powerful +12V output line, with an efficiency rating of >85% and an 80 Plus Bronze certification, along with a reliable component base and the use of heat-resistant Taiwanese capacitors, ensure stable power for PC components and energy savings during operation.
In stock
2679₴
Manuals
650W Guaranteed
Rated Output
Rated Output
Powerful
+12V Output
+12V Output
3 Year
Warranty
Warranty
Multiple Protection
Circuit System
Circuit System
01

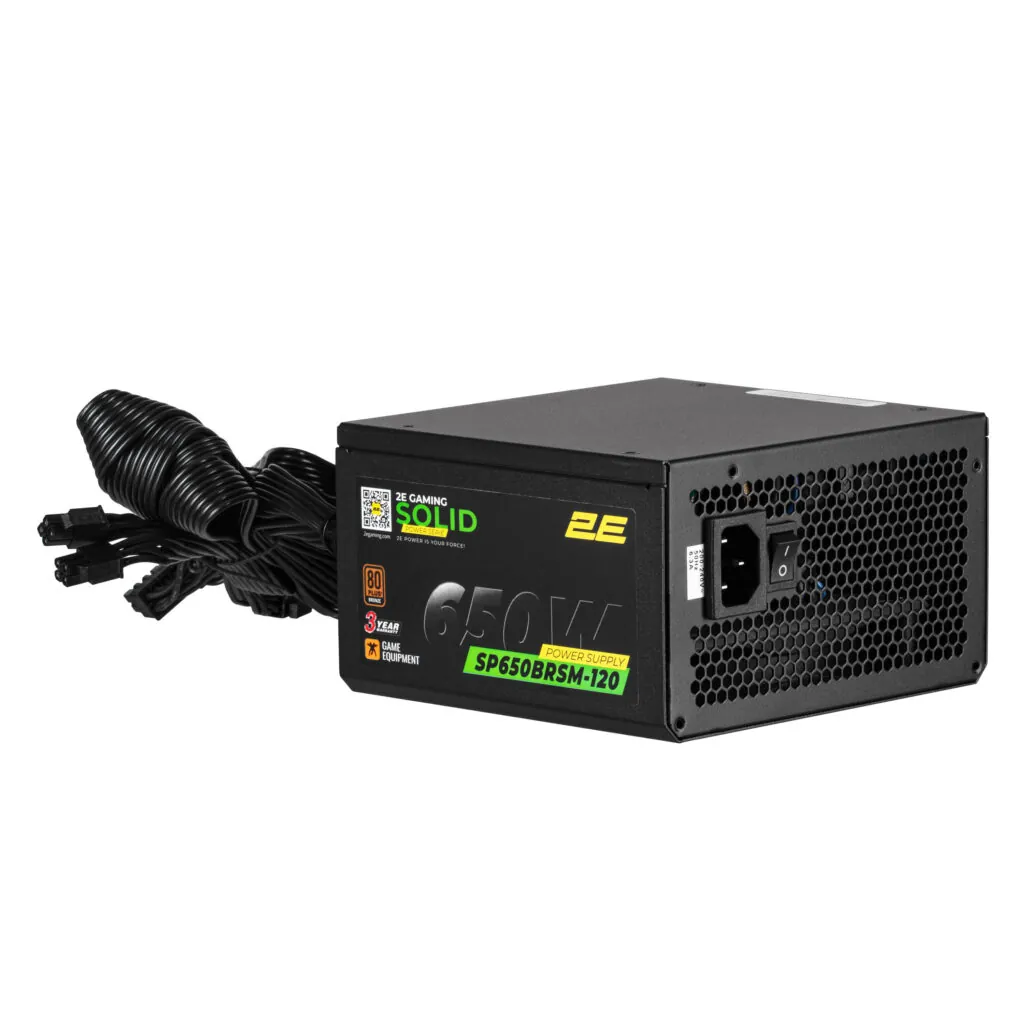

ATX format, black steel body
Standard dimensions – 140x150x86mm. Compatible with most common classic PC case form factors.
02
APFC technique
Active reactive power compensation method with a maximum factor of up to 99.5% for long-term and stable operation with high energy efficiency. A guarantee of safe and reliable computer system operation with a minimum level of noise, heat generation, and power fluctuations.
03

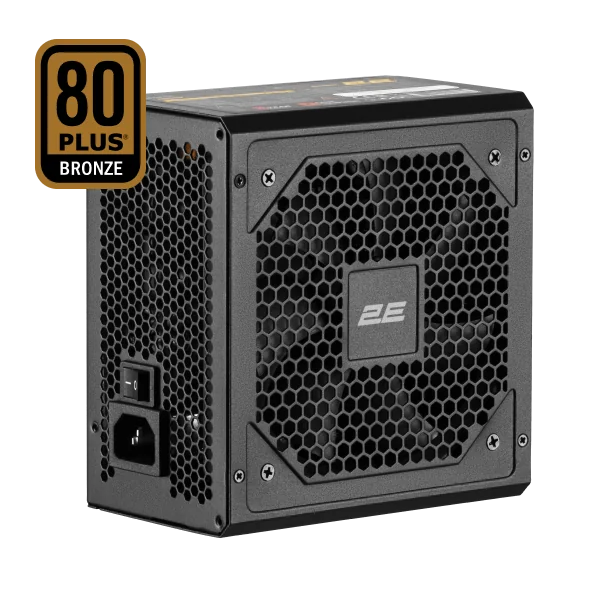

80+ Bronze certification
Efficiency of 85%, 88%, 85% at 20%, 50% and 100% load, significantly reducing overall system power consumption, current leakage, overheating, as well as high frequency noise and fan noise.
04

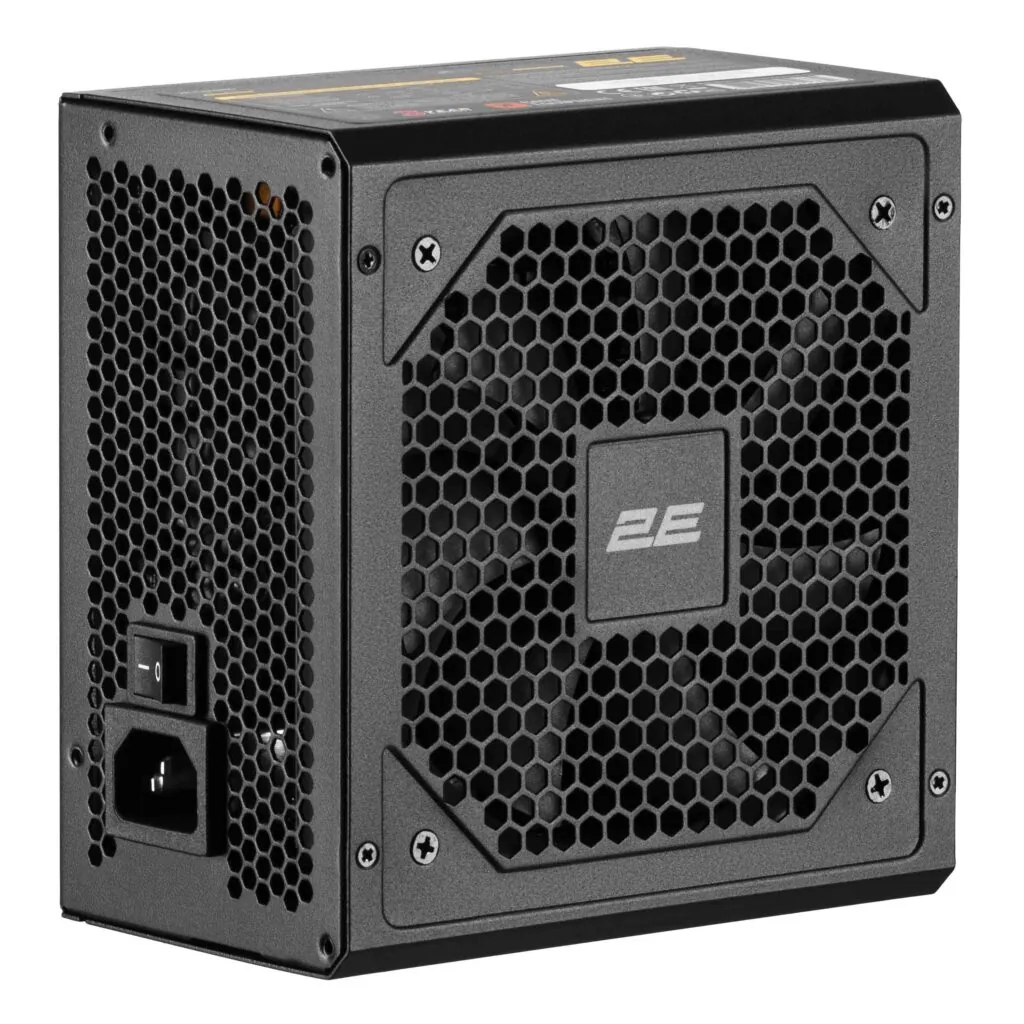

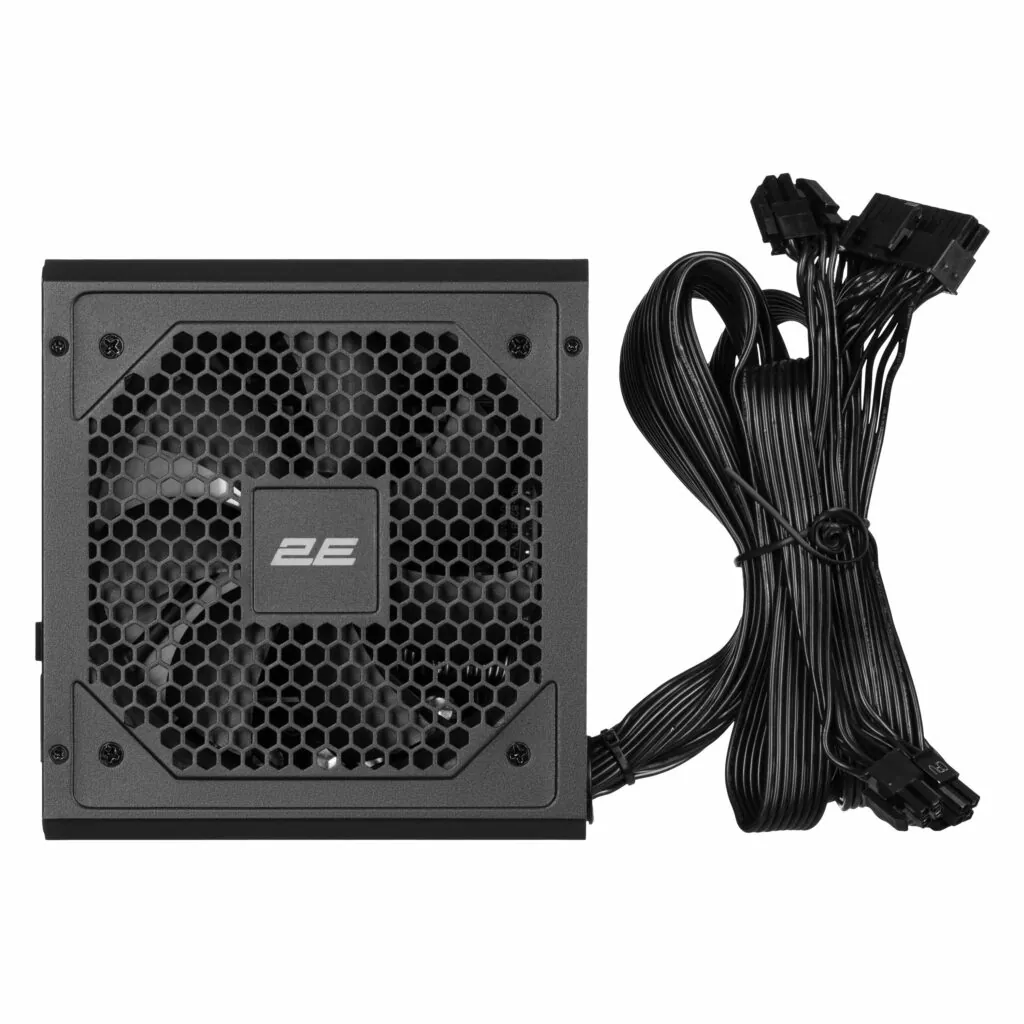

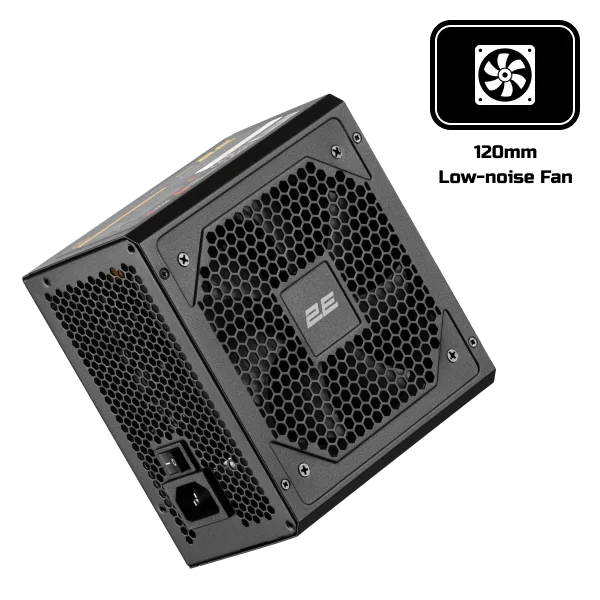

Quiet 120mm fan
Optimal power supply component base cooling: active – with the help of a quiet 120mm fan on a hydrodynamic bearing, and passive – with the help of a built-in heatsink.
05
Modern component base
The use of reliable heat-resistant Taiwanese capacitors for stable operation at high temperatures and voltages. The presence of a special electromagnetic interference filter to optimize the functioning of the system. Single bus architecture, up to +12V and 650W of available power at 90% efficiency.
06
Stable CPU and graphics card power supply voltage
Support for a wide range of PC components. Minimum output voltage fluctuation. 12VDC for stable system operation. Input voltage range – 200-240VAC.
07

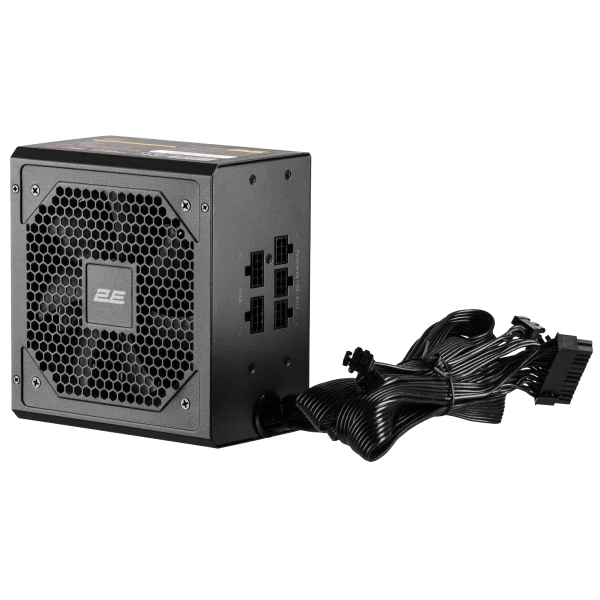

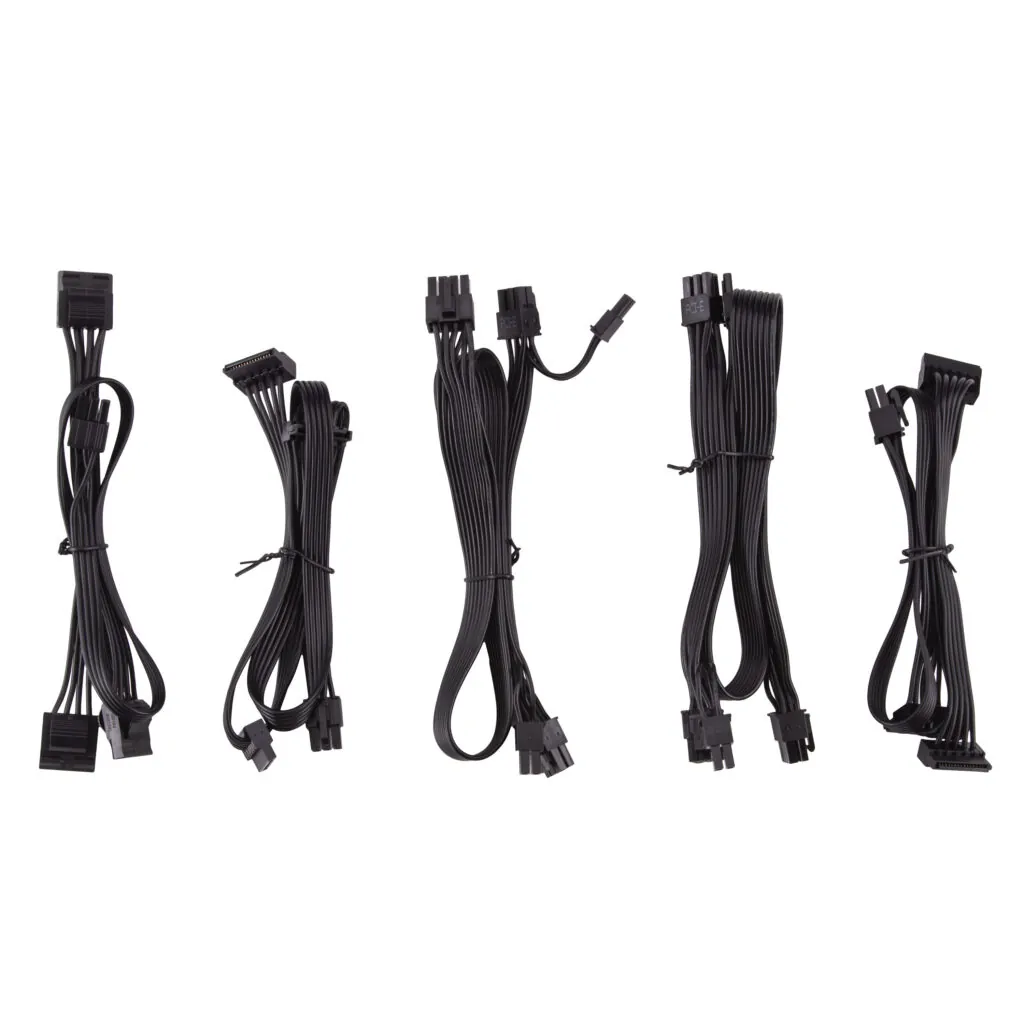

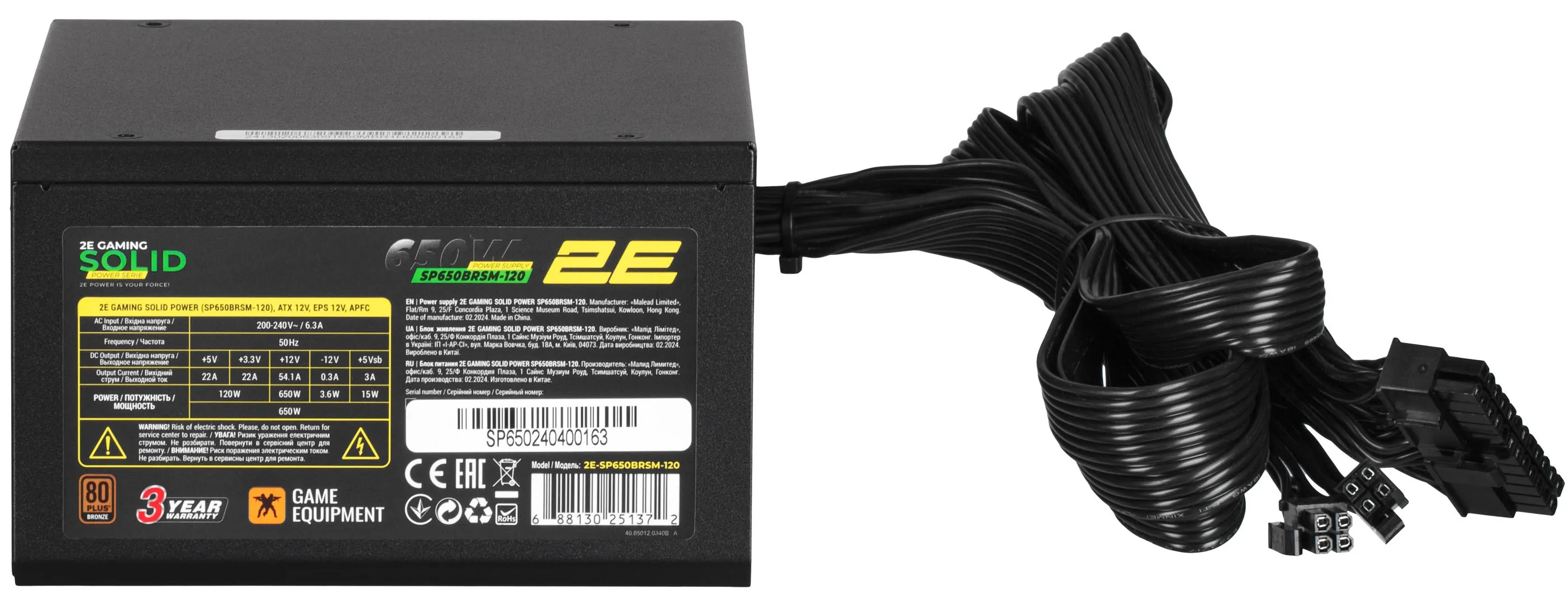

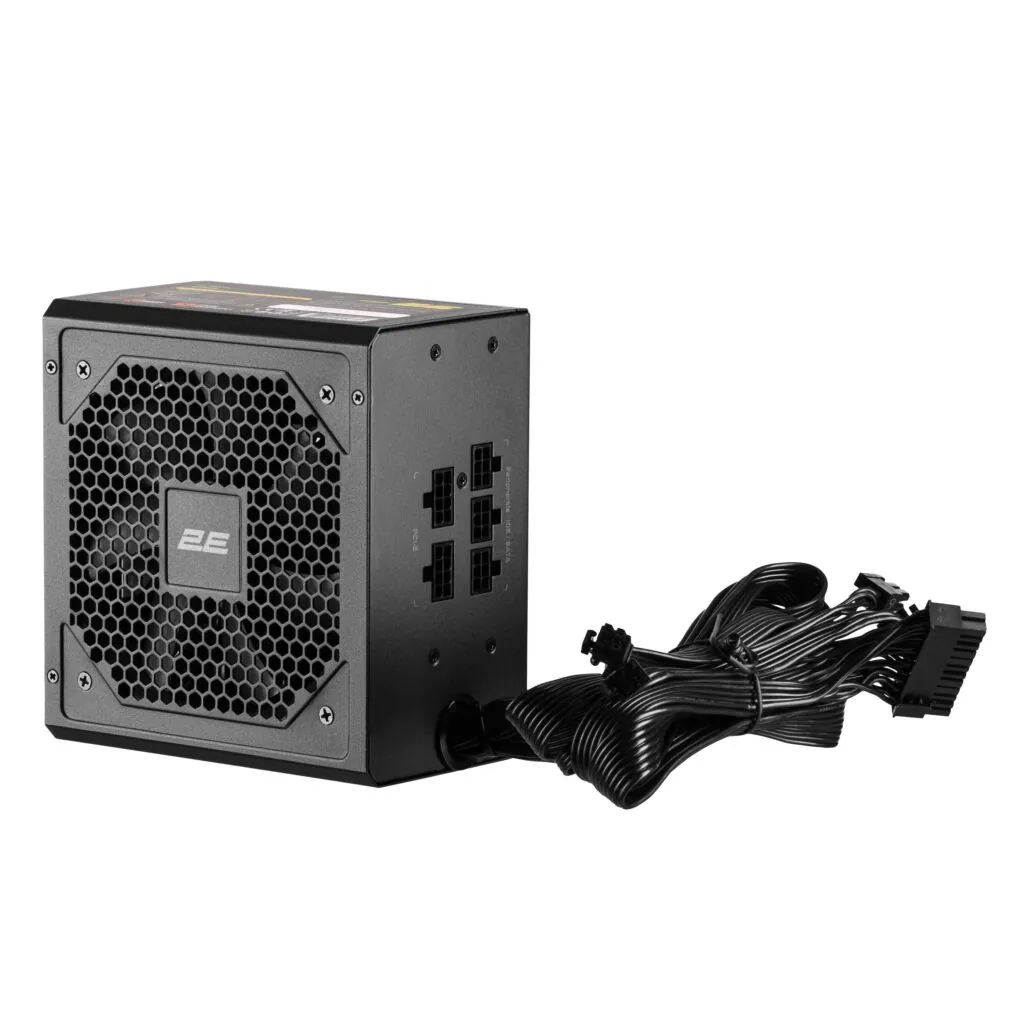

Semi-modular cable connection
Optimal length, configuration and arrangement of cables. The connection is semi-modular. Flat black cables: convenient, reliable, resistant to mechanical damage, elastic for easy placement, layout in the case.
08
Safe operation thanks to direct double conversion technology
Over Current Protection (OCP), Under Voltage Protection (UVP), Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP).
09

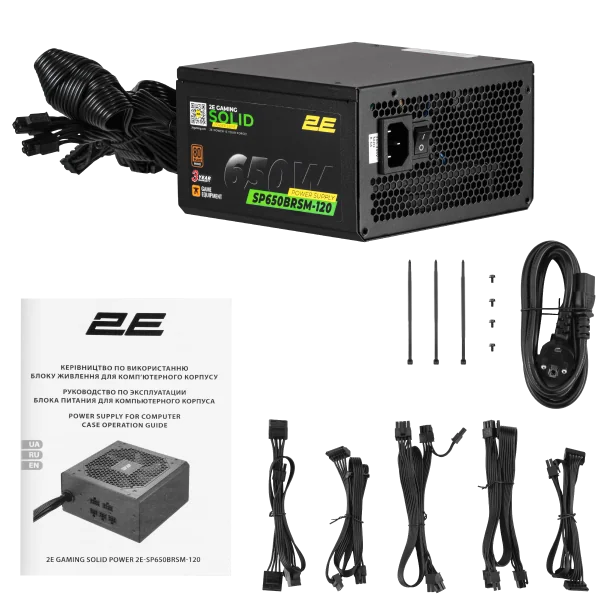

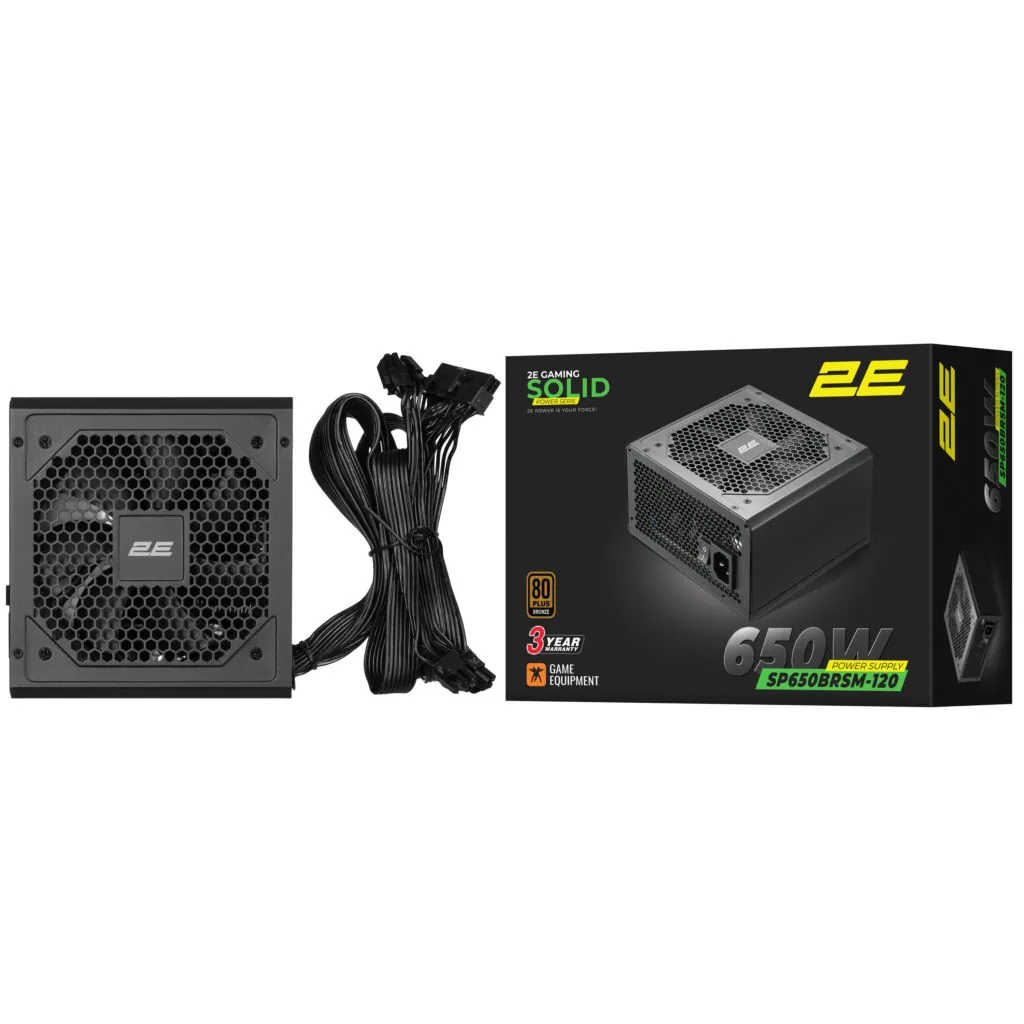

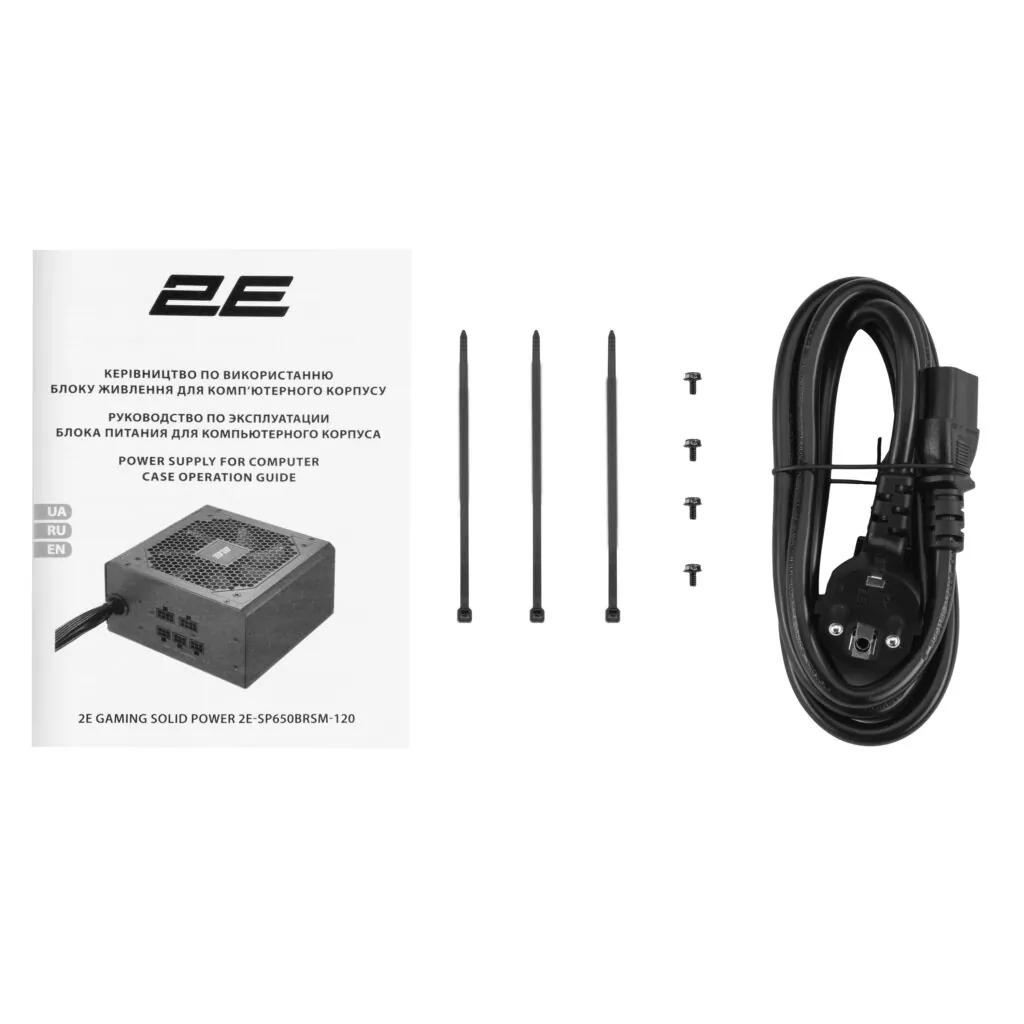

Package
Power cable, screws for fixing the power supply unit – 4 pcs., ties – 3 pcs., instructions.
Cable diagram
2E Gaming Power Supply SOLID Power SP650BRSM-120 2E-SP650BRSM-120:
Specifications
Where to buy
- TypePower Supply
- Form FactorATX
- ModularSemi modular
- Input voltage, V200-240
- Input current, A6.3
- Frequency, Hz50
- PFCActive

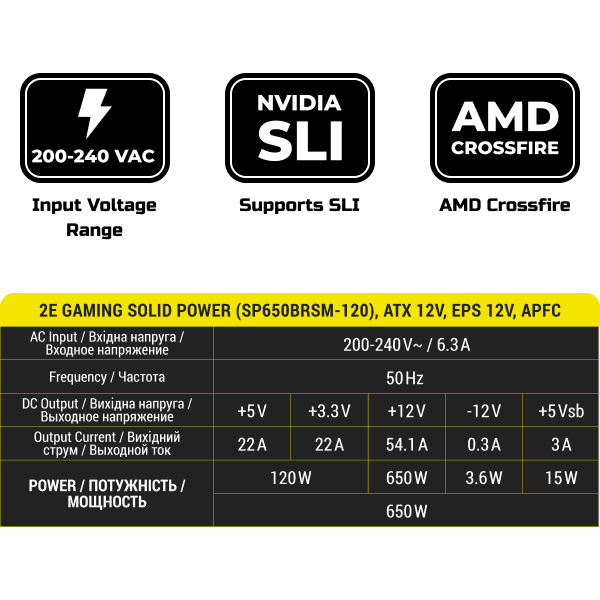

- Line load3,3V 22A; +5V 22A; +12V 54,1A, -12V 0,3A; +5VSB 3A
- Еfficiency>85%
- ProtectionOCP, OVP, OPP, SCP, UVP
- Output power, W650
- CertificatesCE, CB, RoHS, EAC
- Fan size, mm120

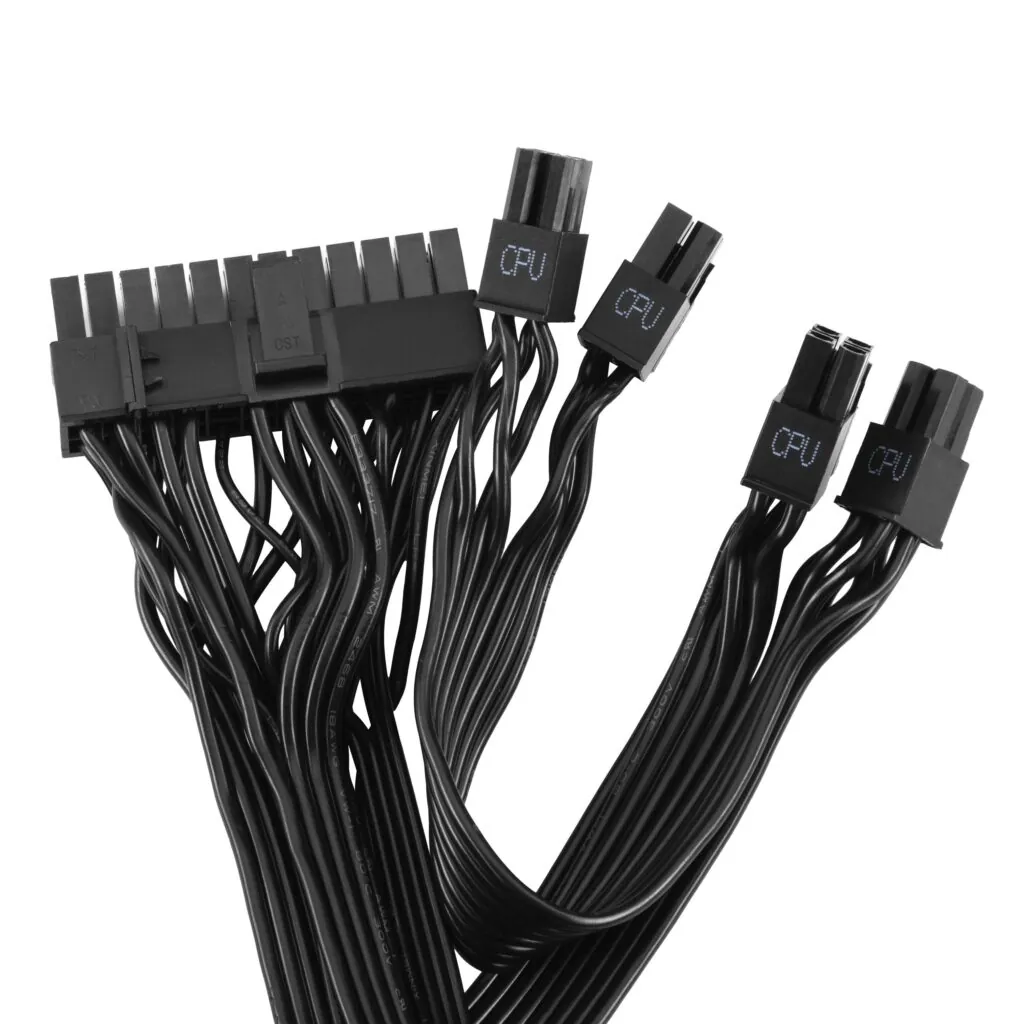

- Connectors1 x MB 24(20+4) pin, 500mm, 2 x CPU 8(4+4) pin, 600+150mm, 4 x PCI-E 8(6+2) pin, (500+150mm)*2, 6 x SATA, (400+150+150mm)*2, 3 x Molex, 400+150+150mm
- 80 PLUS CertificateBronze
- Power cable, m1.2/EU
- Dimensions (WxHxD), mm140x86x150
- Weight, kg2.15
- ManufacturedChina
- Warranty36 months
