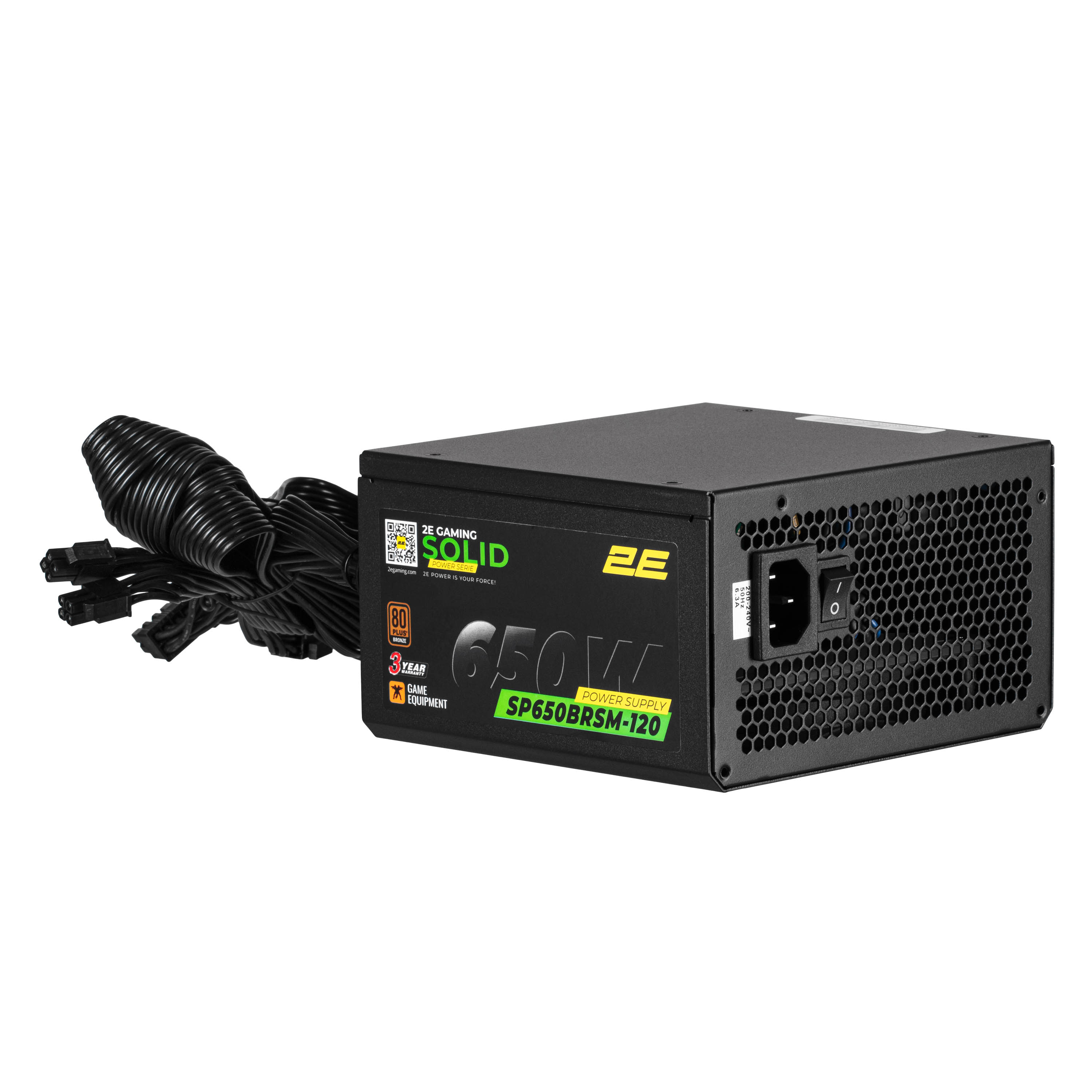

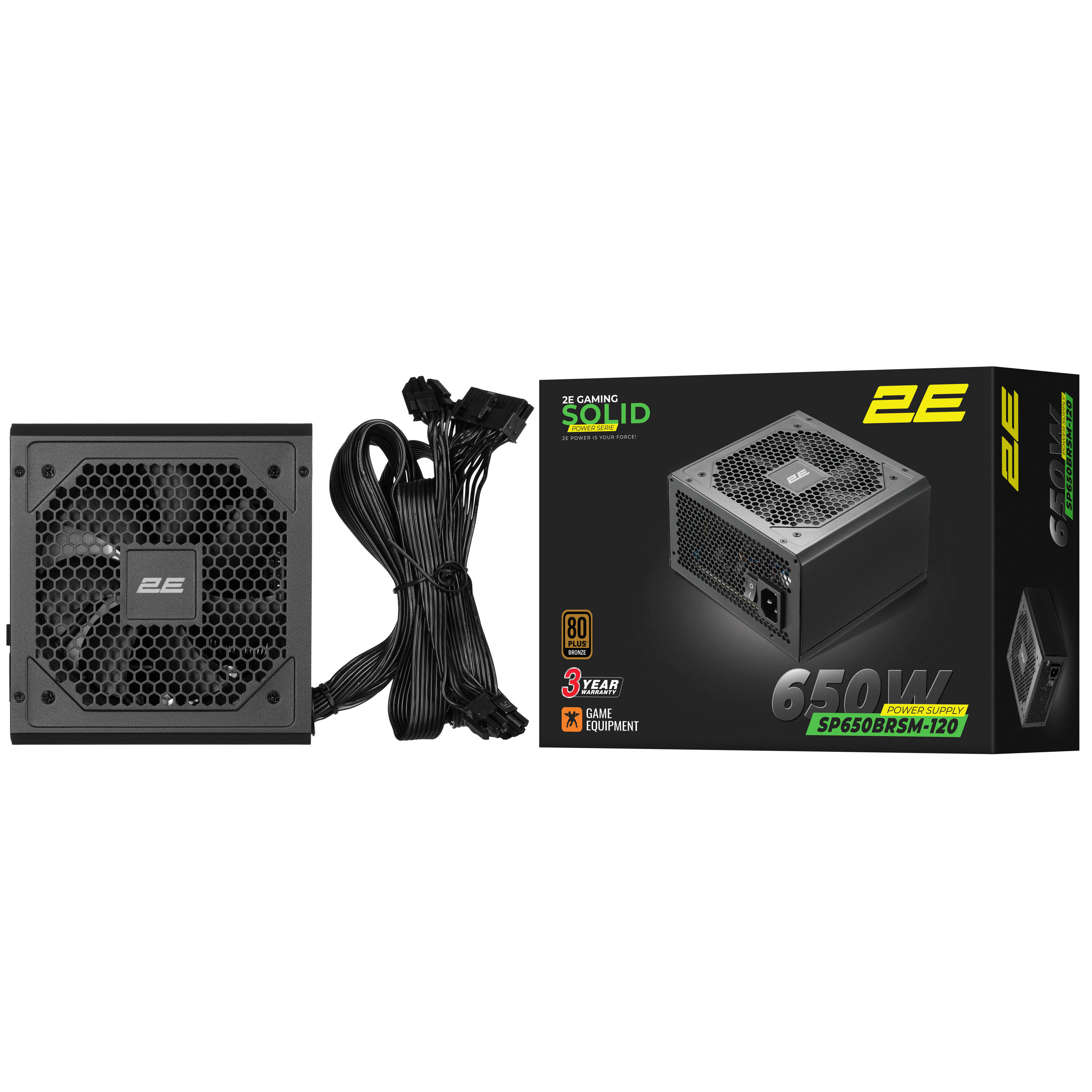

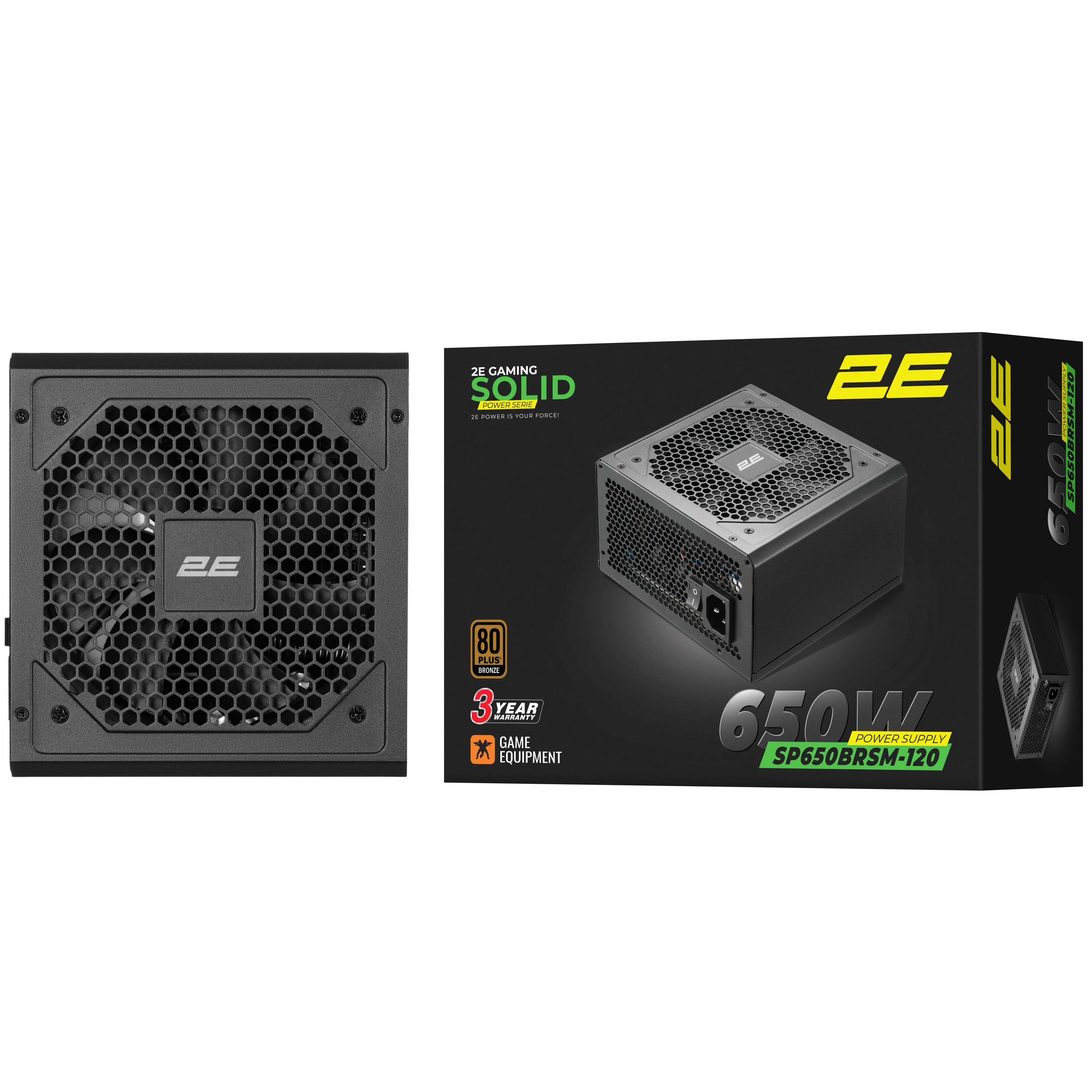

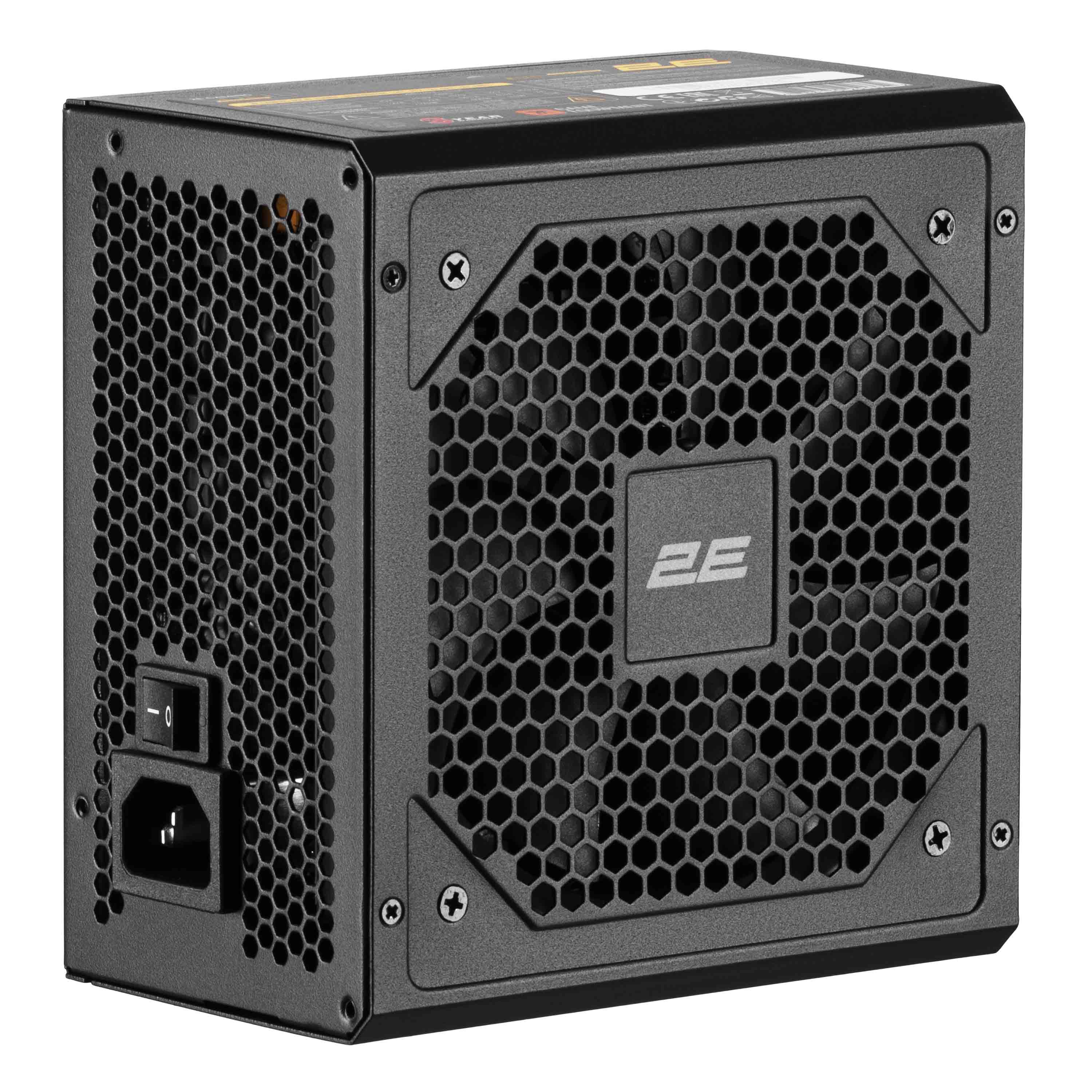

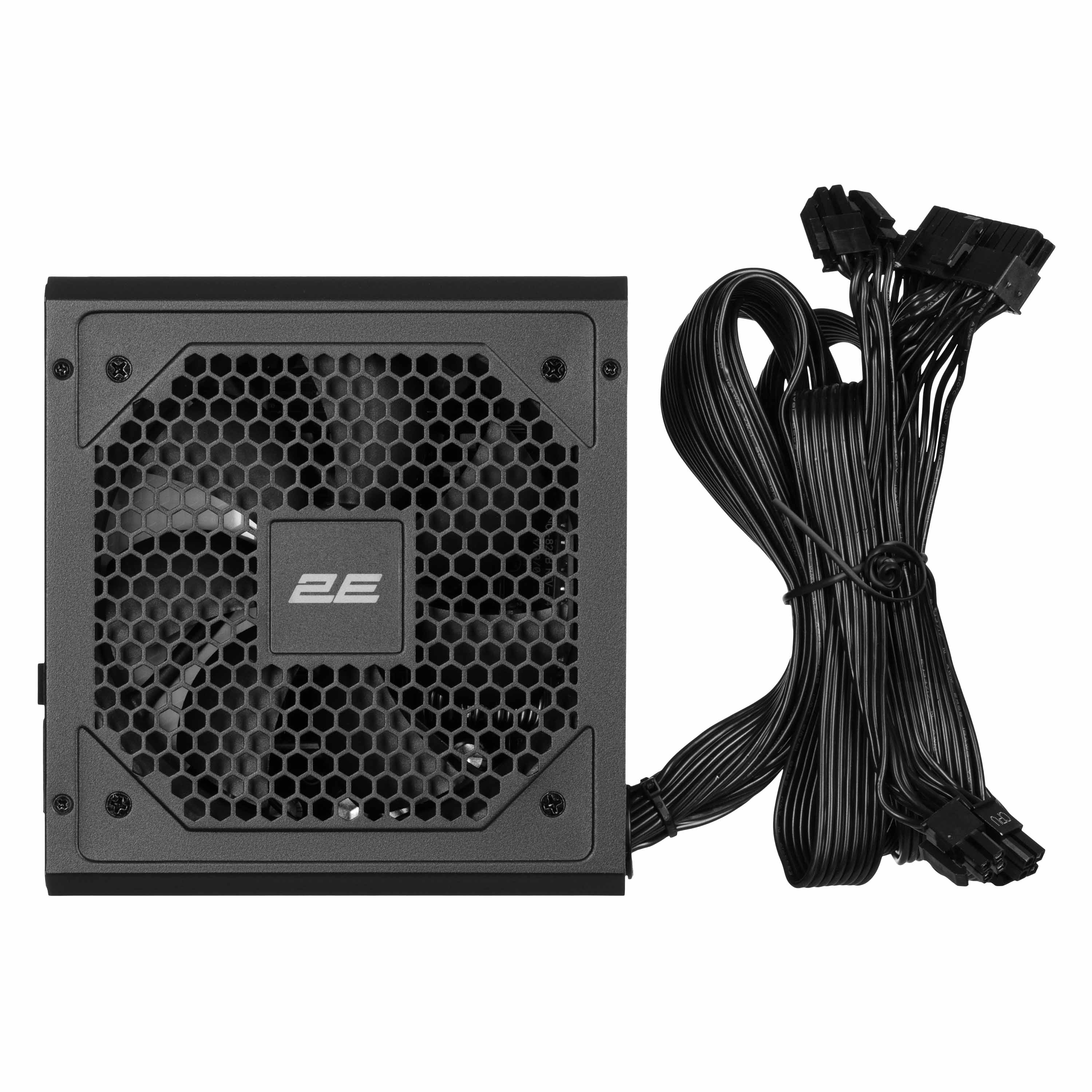

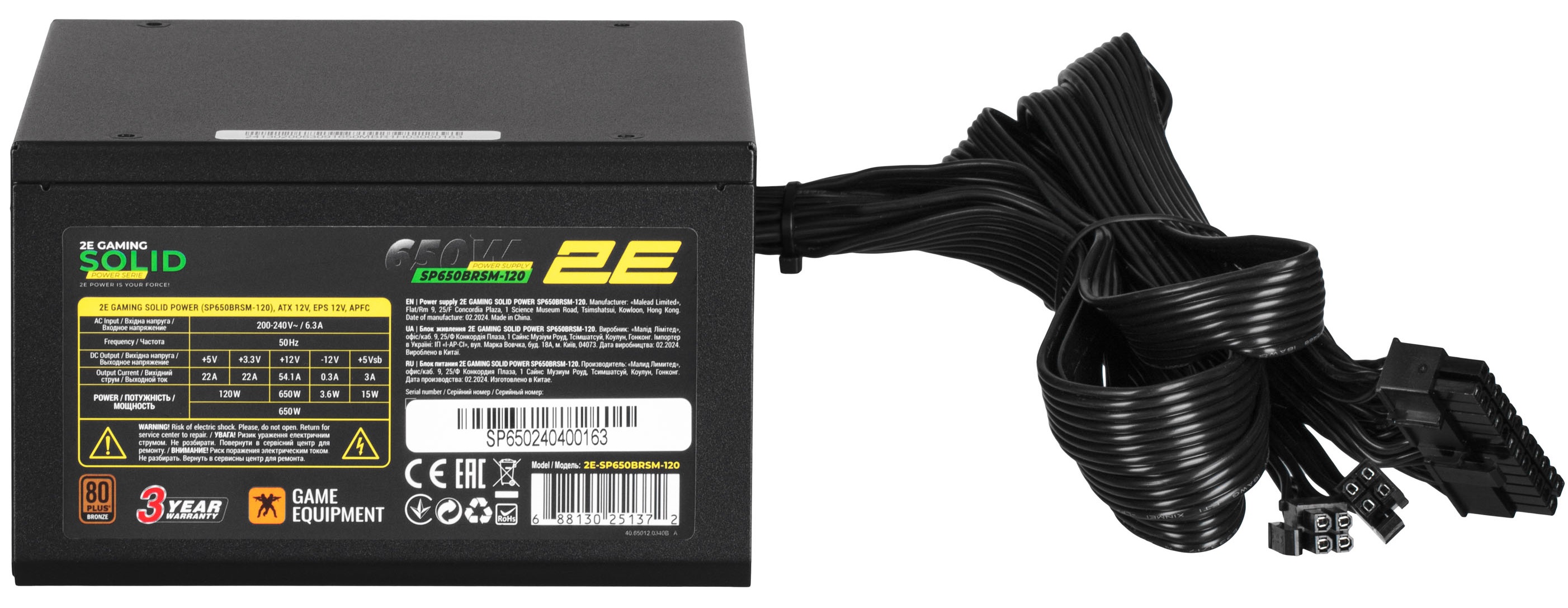

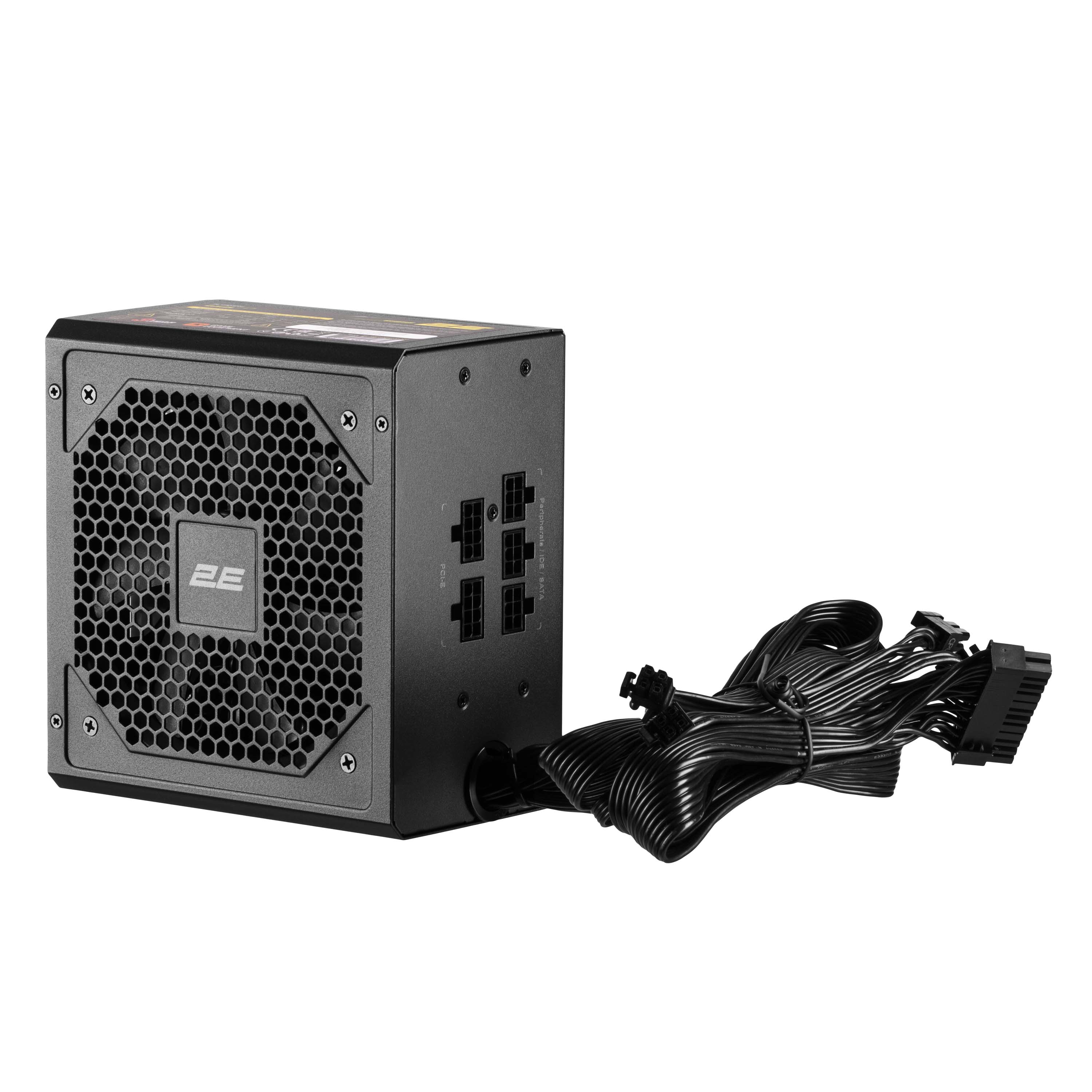

2E Gaming Power Supply SOLID Power SP650BRSM-120

2E Gaming Power Supply SOLID Power SP650BRSM-120

Name: 2E Gaming PSU Solid Power (650W), &gt;85%, 80+ Bronze, 120mm, 1xMB 24pin(20+4), 2xCPU 8pin(4+4), 3xMolex, 6xSATA, 4xPCIe 8pin(6+2), Semi Modular
SKU: 2E-SP650BRSM-120
Availability: InStock

SKU: 2E-SP650BRSM-120

Available

2699 ₴

Product description

2E GAMING Solid Power power supplies with semi-modular cable connection for productive computer systems. Modern circuitry based on DC-DC converters and a powerful +12B output line, efficiency >85%, 80 Plus Bronze certificate, a reliable component base and the use of overheating-resistant Taiwanese capacitors guarantee stable power supply to PC components and energy savings during operation.

Download

Manuals & Software

Compare
Specifications
Where to Buy

Specifications

Key Features

Type

for PC

Application

gaming/mining

Power

Power

650 W

Form Factor

ATX

Specification

Type PFC

active
Fan diameter

120 mm
Еfficiency

85 %
80 PLUS Certificate

bronze

Input voltage

200 - 240 В
Input current

6.3
Frequency

50
Maximum load

3,3V 22A; +5V 22A; +12V 54,1A, -12V 0,3A; +5VSB 3A

Power connectors

The modular connection system

✔️напів модульна

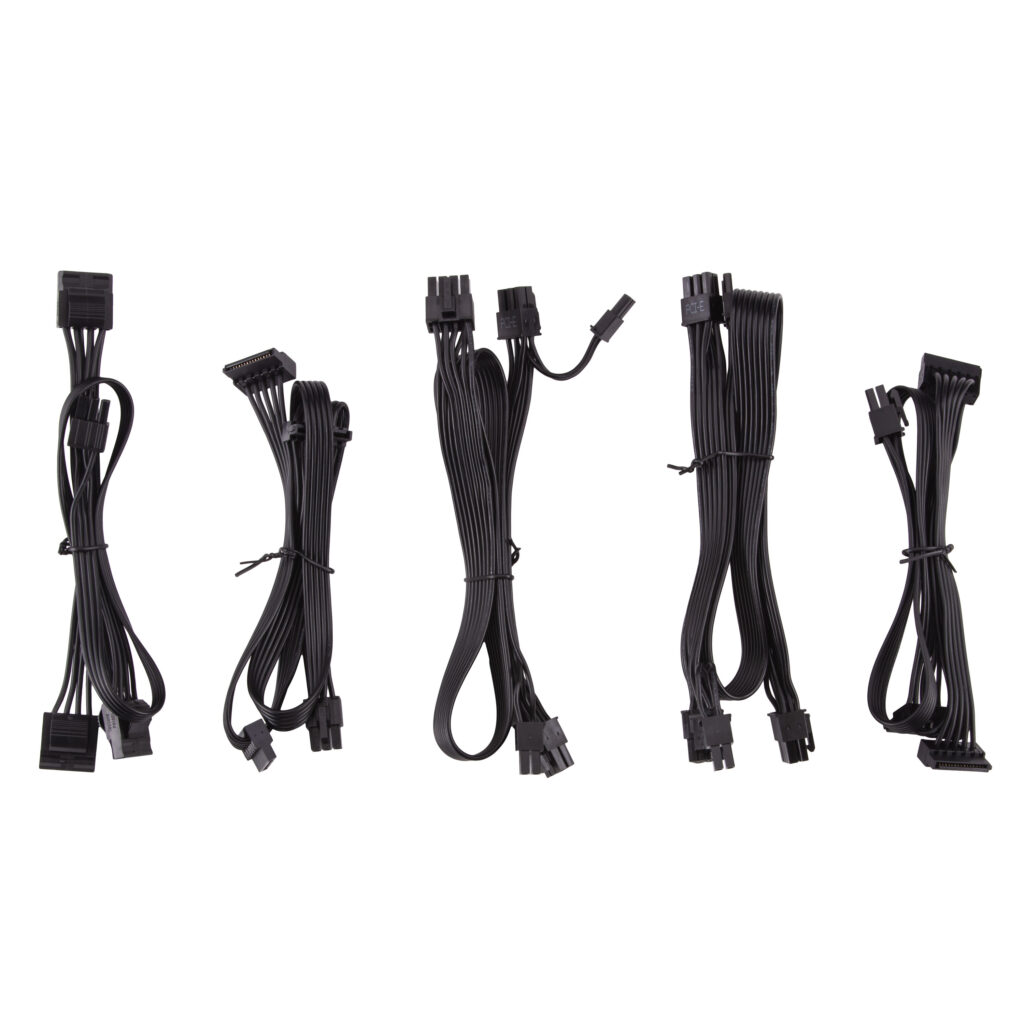

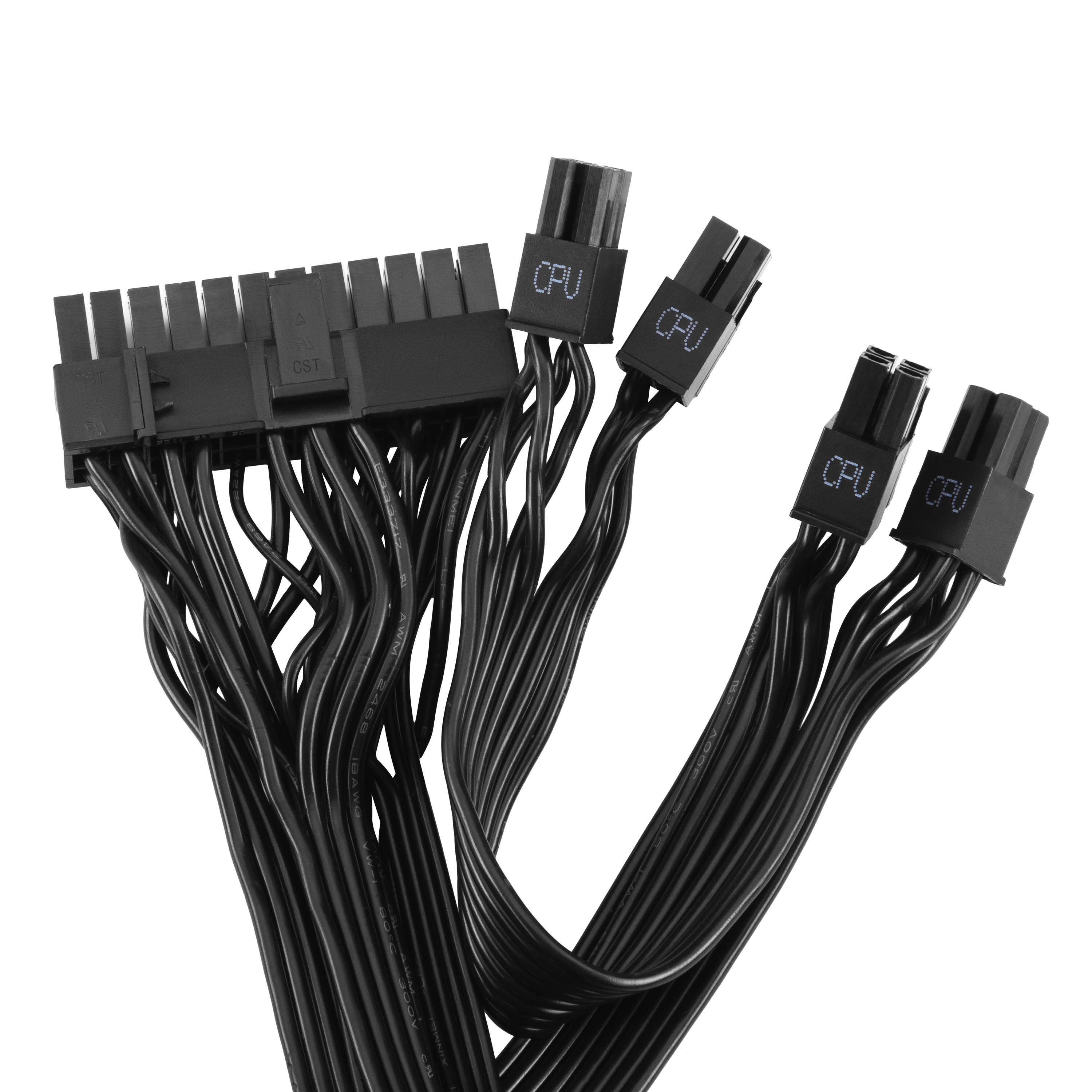

Connectors

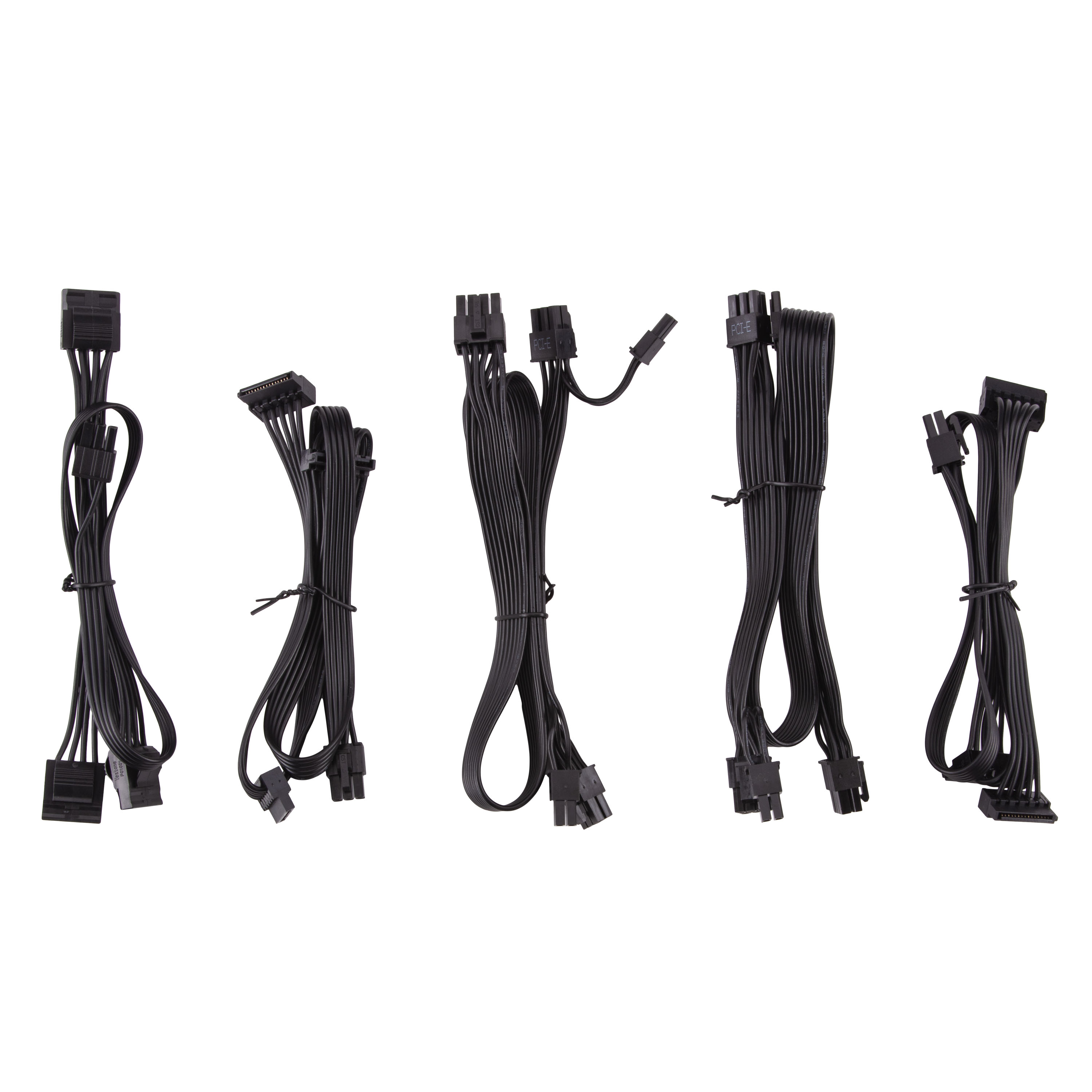

1 x MB 24(20+4) pin, 500 mm / 2 x CPU 8(4+4) pin, 600+150 mm / 6 x SATA, (400+150+150mm)*2 modular / 3 x Molex, 400+150+150mm modular / 4 x PCI-E 8(6+2) pin, (500+150мм)*2 modular

Additionally

Security

UVP (Under Voltage Protection) / OVP (Overvoltage Protection) / SCP (Short-Circuit Protection) / OPP (Over Power Protection) / OCP (Over Current Protection)

Certificates

CE / CB / EAC / RoHS

Physical

Dimensions (HxWxD )

86 x 140 x 150
Length of cable

1.2/EU

The weight

2.15 kg
