2E Gaming Power Supply SOLID SP700BR-120

SKU: 2E-SP700BR-120
Out of stock
2399 ₴

Out of stock

Product description

2E GAMING SOLID POWER (700W) power supply unit with fixed connection cables for modern computer systems of medium and higher complexity levels. Modern circuitry based on DC-DC converters and a powerful +12V output line, >85% efficiency, 80 Plus Bronze certificate, a reliable component base and the use of heat-resistant Taiwanese capacitors guarantee stable PC component power supply and energy savings during operation.

Download
Manuals & Software

Specifications

Key Features
  • Type
    for PC
  • Application
    gaming/mining
Power
  • Power
    700 V
  • Form Factor
    ATX
Specification
  • Type PFC
    active
  • Number of fans
    1
  • Fan diameter
    120 mm(підшипник гідро-динамічний)
  • Еfficiency
    85 %
  • 80 PLUS Certificate
    bronze
  • Input voltage
    100 - 240 В
  • Input current
    10 - 5 А
  • Frequency
    47 - 63 Гц

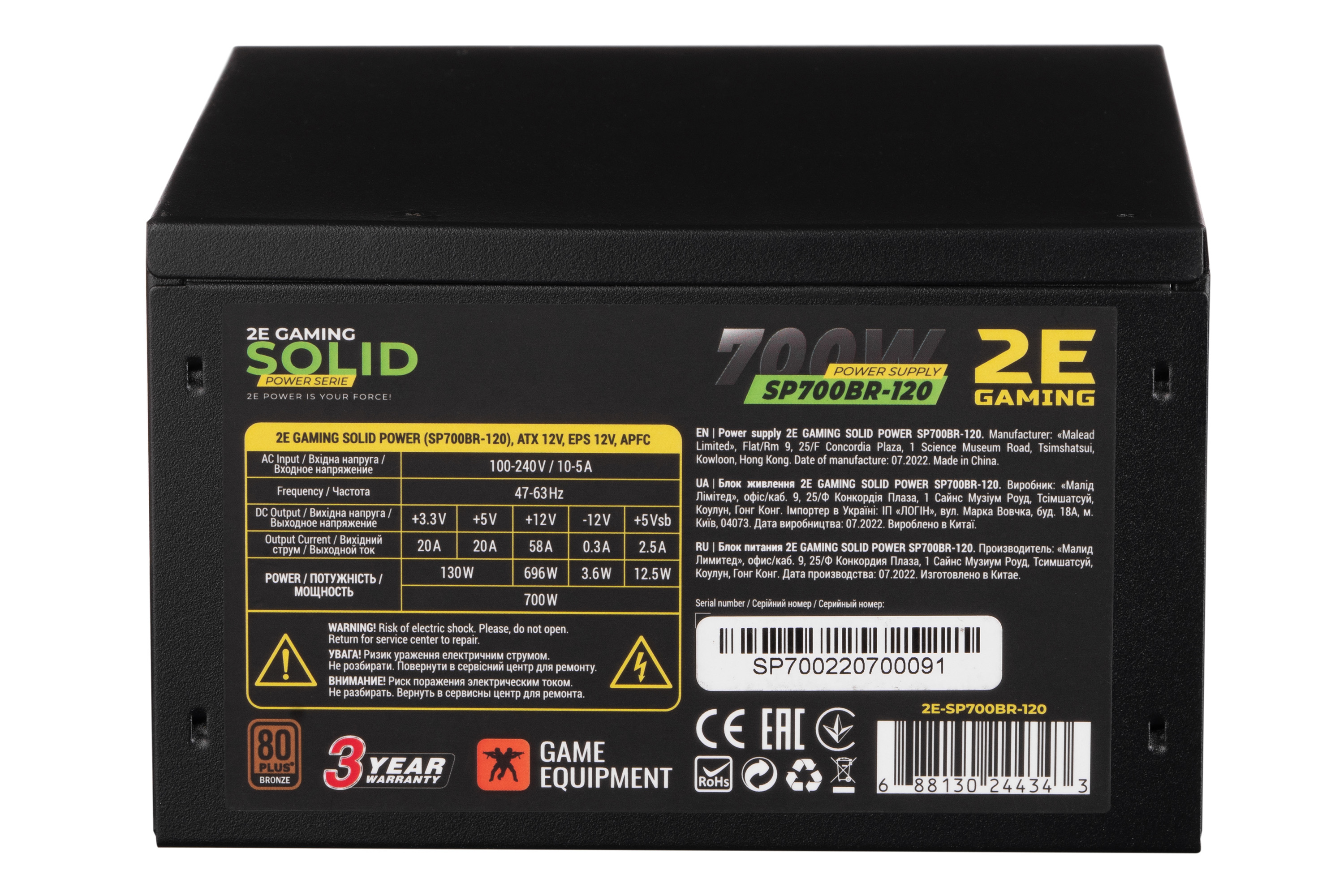

  • Maximum load
    +5VSB - 2.5A / +5V - 20A / -12V 0.3A / 3,3V 20A / +12V 58A
Power connectors
  • Connectors
    3 x Molex 500+150+150мм/ x2 / 1 x MB 24(20+4) Pin 500мм / 6 x SATA 500+150+150мм/ x2 / 6+2pin PCI-E x 4 500+150мм/ x2 / 1 x CPU 8 (4+4) pin 650мм
Additionally
  • Security
    UVP (Under Voltage Protection) / OVP (Overvoltage Protection) / SCP (Short-Circuit Protection) / OPP (Over Power Protection) / OCP (Over-current Protection)
  • Certificates
    CE / CB / EAC / RoHS
Physical
  • Colour
    black
  • Dimensions (HxWxD )
    86 x 140 x 150
  • Length of cable
    1.2
  • The weight
    1.98 kg
    Key Features
    • Type
      for PC
    • Application
      gaming/mining
    Power
    • Power
      700 V
    • Form Factor
      ATX
    Specification
    • Type PFC
      active
    • Number of fans
      1
    • Fan diameter
      120 mm(підшипник гідро-динамічний)
    • Еfficiency
      85 %
    • 80 PLUS Certificate
      bronze
    • Input voltage
      100- 240 В
    • Input current
      10- 5 А
    • Frequency
      47- 63 Гц
    • Maximum load
      +5VSB - 2.5A / +5V - 20A / -12V 0.3A / 3,3V 20A / +12V 58A
    Power connectors
    • Connectors
      3 x Molex 500+150+150мм/ x2 / 1 x MB 24(20+4) Pin 500мм / 6 x SATA 500+150+150мм/ x2 / 6+2pin PCI-E x 4 500+150мм/ x2 / 1 x CPU 8 (4+4) pin 650мм
    Additionally
    • Security
      UVP (Under Voltage Protection) / OVP (Overvoltage Protection) / SCP (Short-Circuit Protection) / OPP (Over Power Protection) / OCP (Over-current Protection)
    • Certificates
      CE / CB / EAC / RoHS
    Physical
    • Colour
      black
    • Dimensions (HxWxD )
      86 x 140 x 150
    • Length of cable
      1.2
    • The weight
      1.98 kg
700W Guaranteed Rated Output
Powerful +12V Output
3 Year Warranty
Multiple Protection Circuit System
01

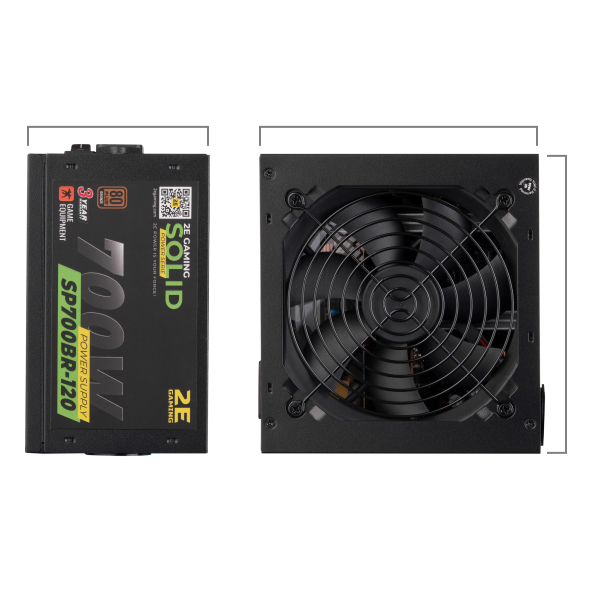

ATX format, black steel body

Standard dimensions - 140x150x86mm. Compatible with most common classic PC case form factors.
02

APFC technique

Active reactive power compensation method with a maximum factor of up to 99.5% for long-term and stable operation with high energy efficiency. A guarantee of safe and reliable computer system operation with a minimum level of noise, heat generation, and power fluctuations.
03

80+ Bronze certification

Efficiency of 85%, 88%, 85% at 20%, 50% and 100% load, significantly reducing overall system power consumption, current leakage, overheating, as well as high frequency noise and fan noise.
04

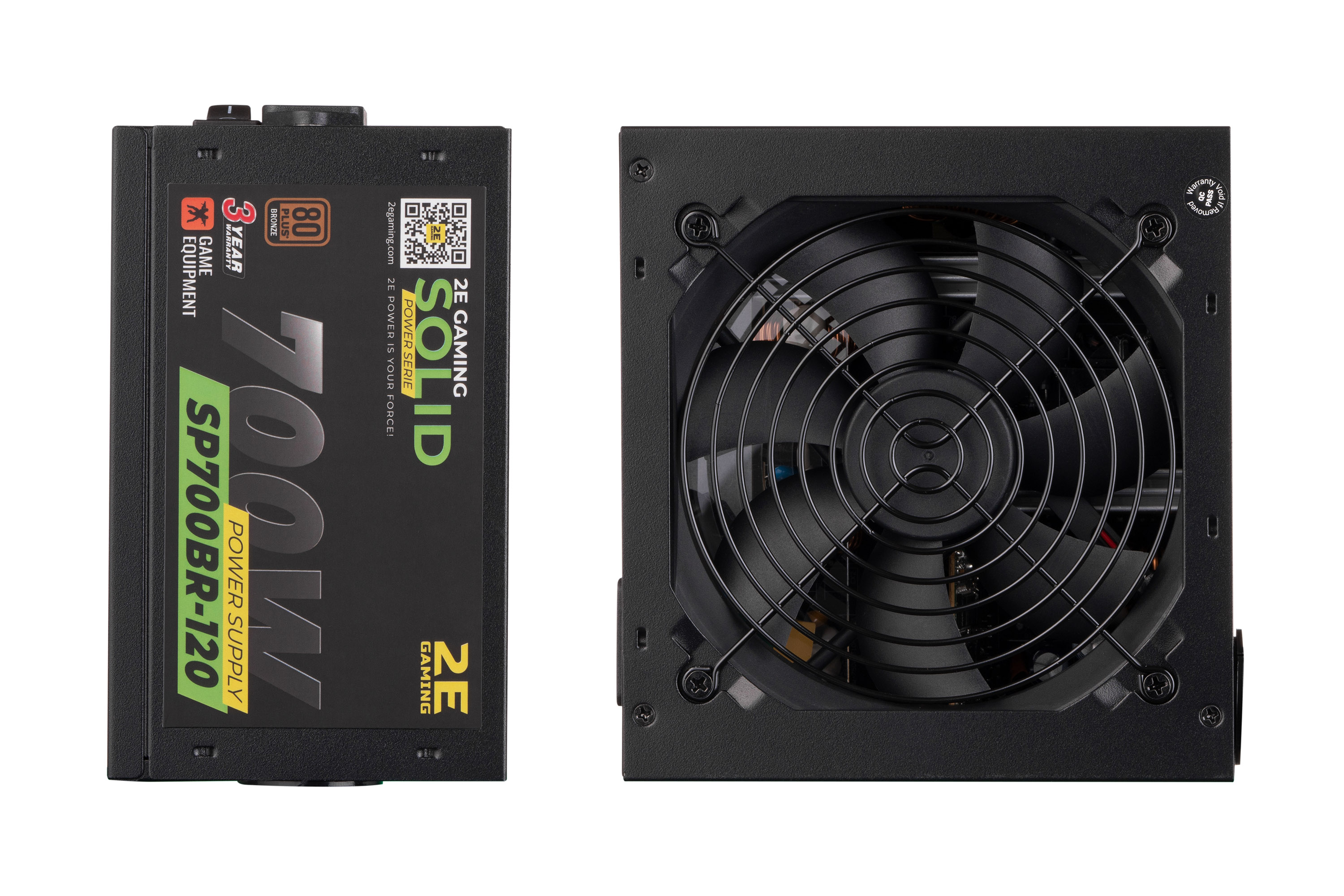

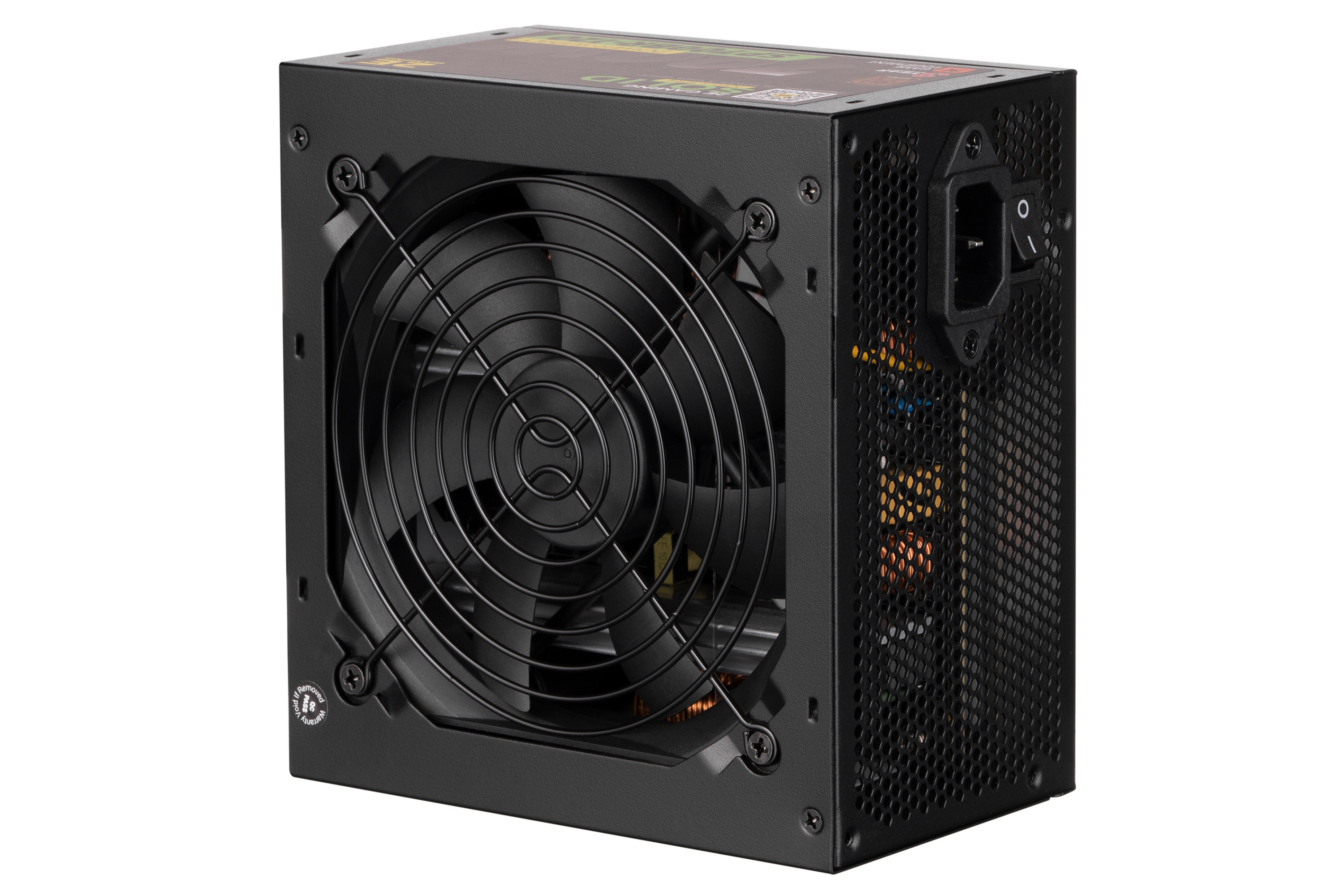

Quiet 120mm fan

Optimal power supply component base cooling: active - with the help of a quiet 120mm fan on a hydrodynamic bearing, and passive - with the help of a built-in heatsink.
05

Modern component base

The use of reliable heat-resistant Taiwanese capacitors for stable operation at high temperatures and voltages. The presence of a special electromagnetic interference filter to optimize the functioning of the system. Single bus architecture, up to +12V and 700W of available power at 90% efficiency.
06

Stable CPU and graphics card power supply voltage

Support for a wide range of PC components. Minimum output voltage fluctuation. 12VDC for stable system operation. Input voltage range - 100-240VAC.
07

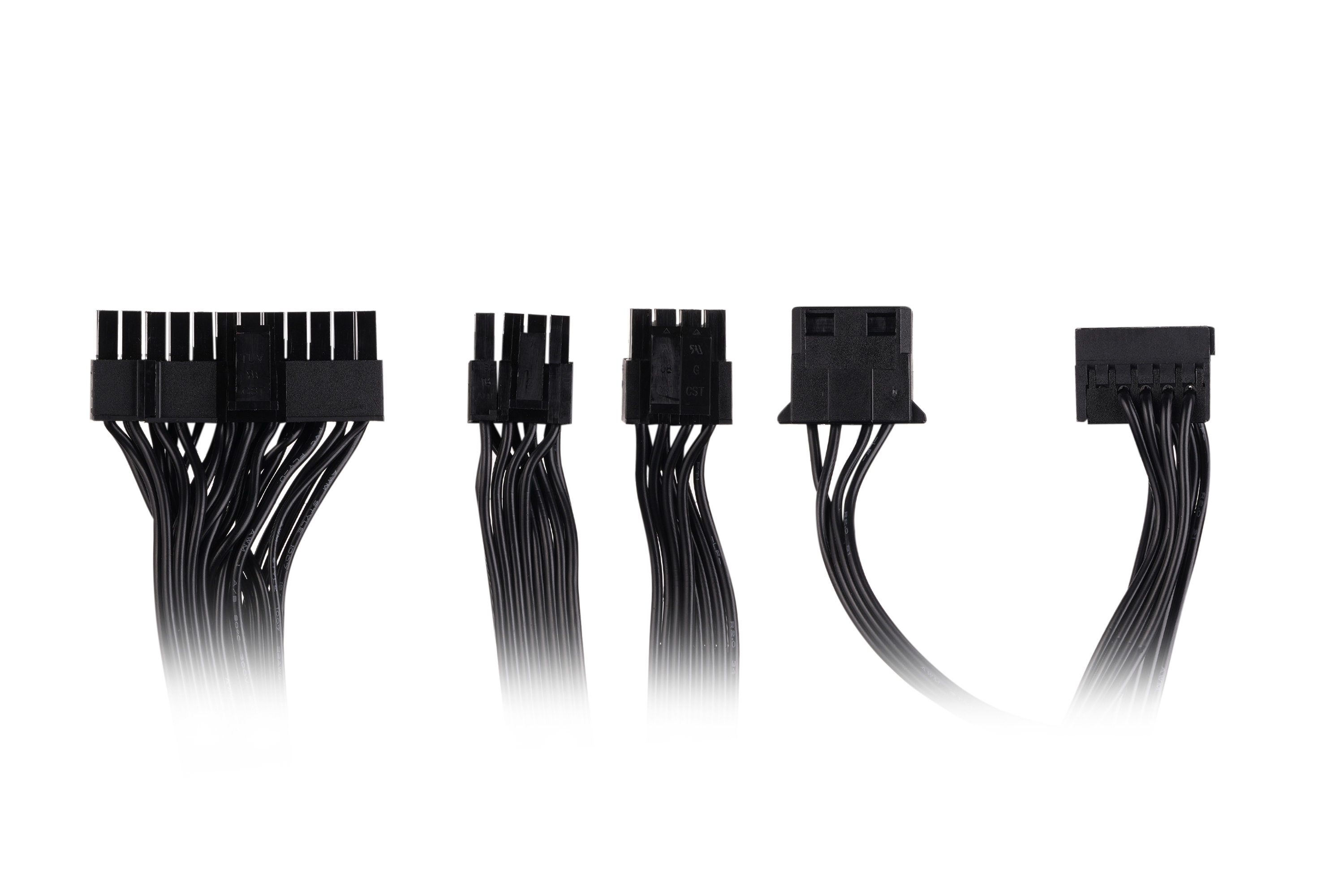

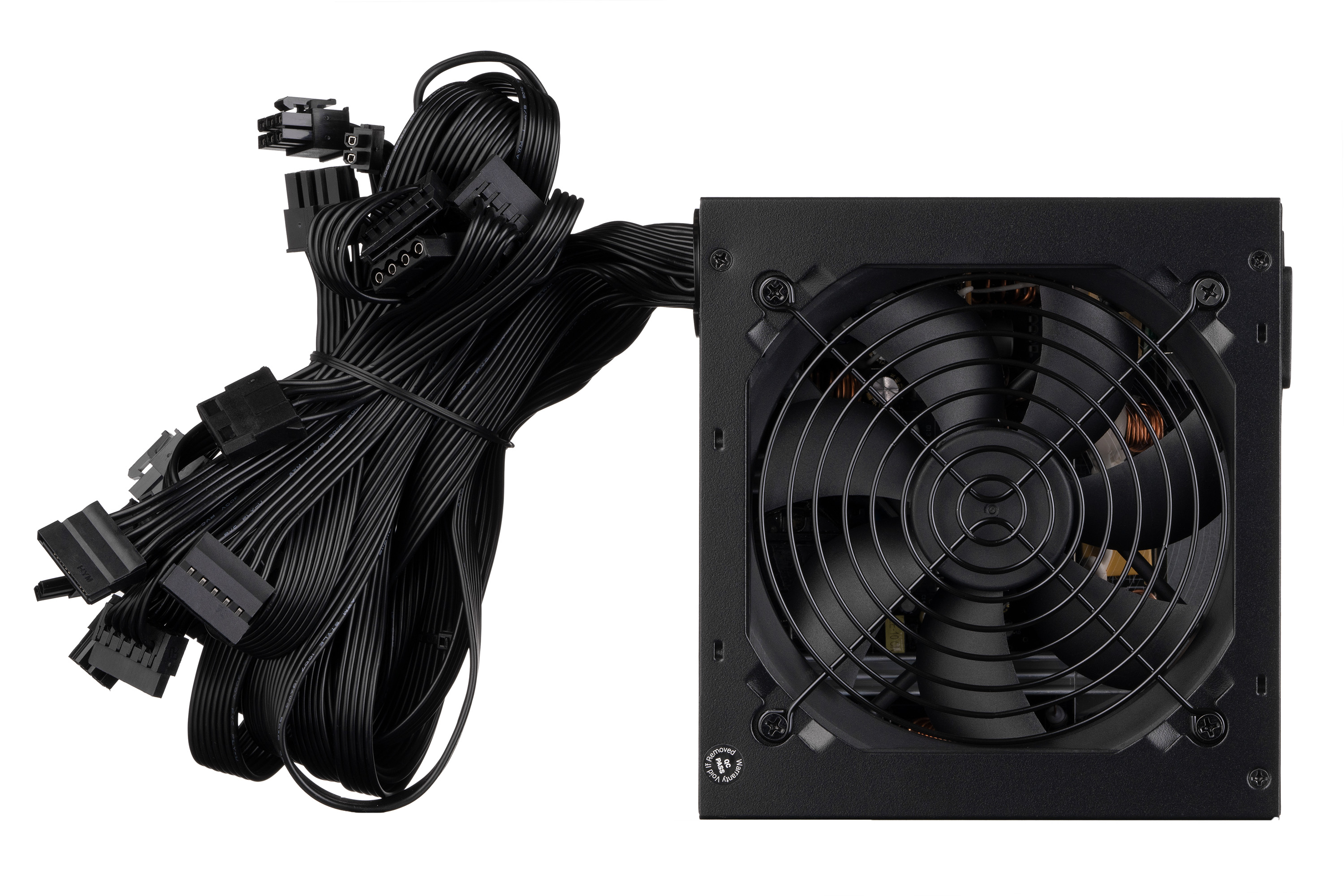

Fixed flat black cables

Reliable, with optimal length, durable and flexible enough for laying and organizing cable management in a modern case.
08

Safe operation thanks to direct double conversion technology

Over Current Protection (OCP), Under Voltage Protection (UVP), Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP).
09

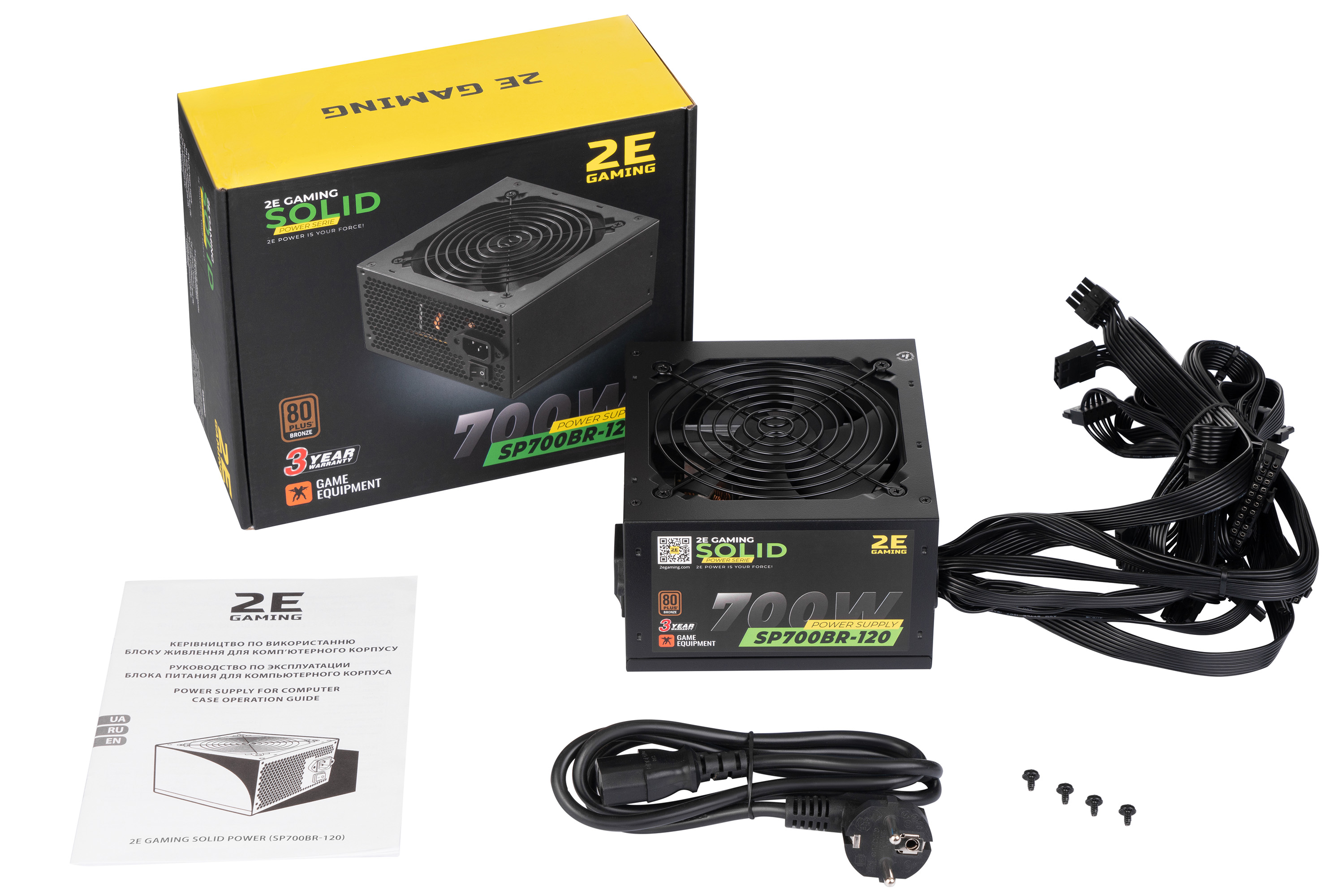

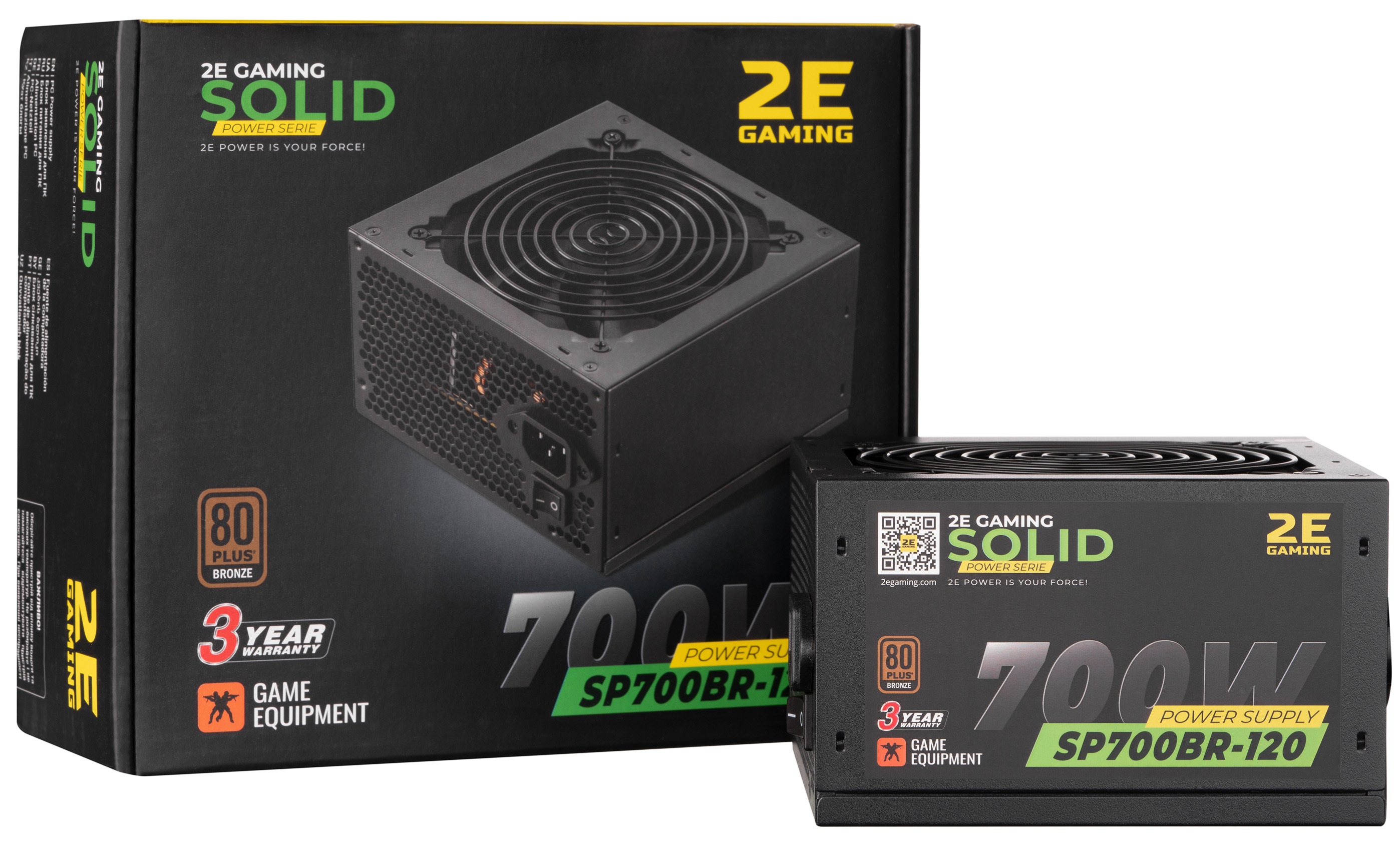

Package

Power cable, 4 x mounting screws, user manual.

2E-SP700 BR-120 cable diagram
