2E Gaming Air Cool
AC90D4
SKU: 2E-AC90D4
CPU cooling with classic tower heatsink design. Compact cooler with a quiet 90mm hydraulic bearing fan. Aluminum heatsink with four 6mm copper heat pipes that are spaced apart to increase cooling efficiency and affect airflow distribution. The TDP of the device is 130W. The cooler has a polished base surface, therefore direct contact of heat pipes with the processor using DTH technology improves heat dissipation. The cooler is also equipped with a convenient mounting on current sockets.
Out of stock
536₴
Manuals
01
Compatible with modern sockets
Convenient fastening. Easy to install and disassemble.
INTEL LGA:775/115X/1200/1700
AMD:FM1/FM2/AM2/AM2+/AM3/AM3+/AM4/AM5
INTEL LGA:775/115X/1200/1700
AMD:FM1/FM2/AM2/AM2+/AM3/AM3+/AM4/AM5
02
Compact size and efficient cooling
Height 130 mm. The design does not interfere with the system components on the motherboard. Heat dissipation rate from the processor surface: 130W.
03
Connector:
4 pin.
04
Classic tower radiator and DTH base design
The compact tower shape of the aluminium radiator provides efficient heat dissipation within confined spaces. Four 6 mm copper heatpipes are embedded directly on the base surface using DTH technology (Direct Touch Hitpipes).
05

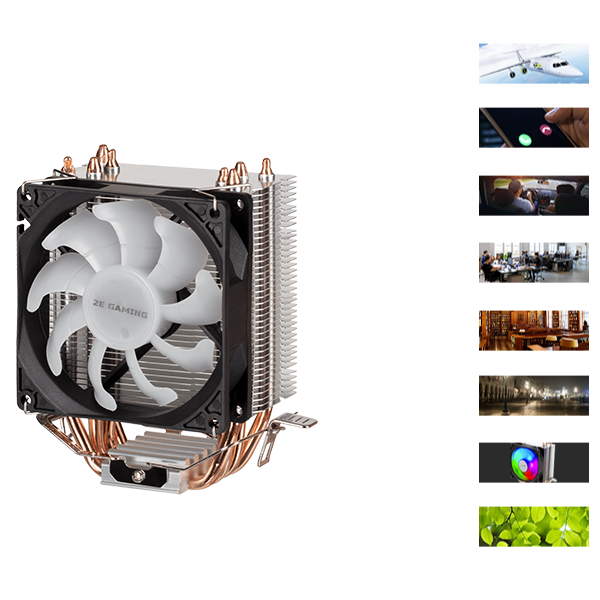

Quiet fan 8-20 +/-10% dBA
The 90 mm fan has nine blades and a rotational speed of 600-1700±10% rpm.
06
Fan hydraulic bearing
Provides stable and quiet operation, does not overheat under high loads.
07
CPU cooler and equipment
- Efficient blade shape
- Quiet 120 mm fan with hydraulic bearing
- The base is made according to the DTH technology – direct contact with the processor
- 4x6mm copper tubes
- Compact and efficient design tower radiator
- Convenient mount
2E Gaming Air Cool AC90D4 2E-AC90D4:
Specifications
Where to buy
- TypeActive cooler
- AppointmentFor processor
- Fan dimensions, mm90х90х25
- Fan productivity15-35 CFM
- Speed, rpm600-1700±10%
- Static pressure0.7-1.57 мм/H2O
- Noise level, dB8-20±10%
- Bearing typeHydraulic
- Connector2510-4PIN
- PWMYes
- Number of blades, pcs9
- Blades colorWhite
- Radiator materialAluminium
- Number of heat pipes, pcs4 (6 mm)
- Power Supply, V12
- Rated current, A0.2+/-10%
- BacklightNon
- LGA775/115X/1200/1700
- AMDFM1/FM2/AM2/AM2+/AM3/AM3+/AM4/AM5
- TDP, W130
- Package contentsCPU cooling system, fan, installation kit, thermal grease, manual, warranty card
- Dimensions (WxHxD), mm93x130x75
- ManufacturedChina
- Warranty12 months
