2E Gaming Air Cool

ACN120-S
SKU: 2E-ACN120-S

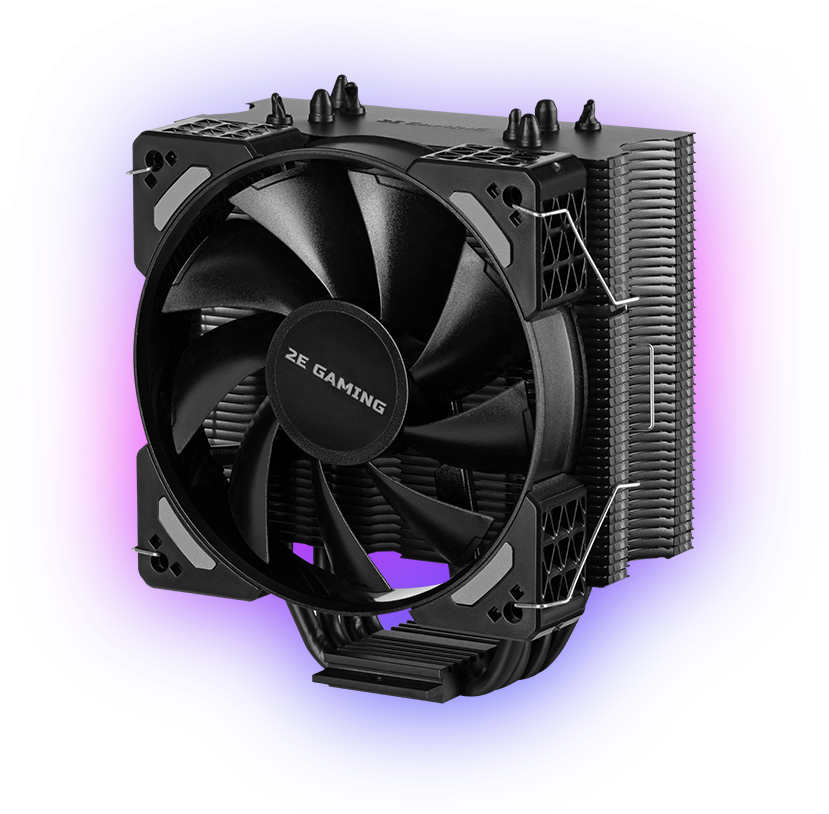

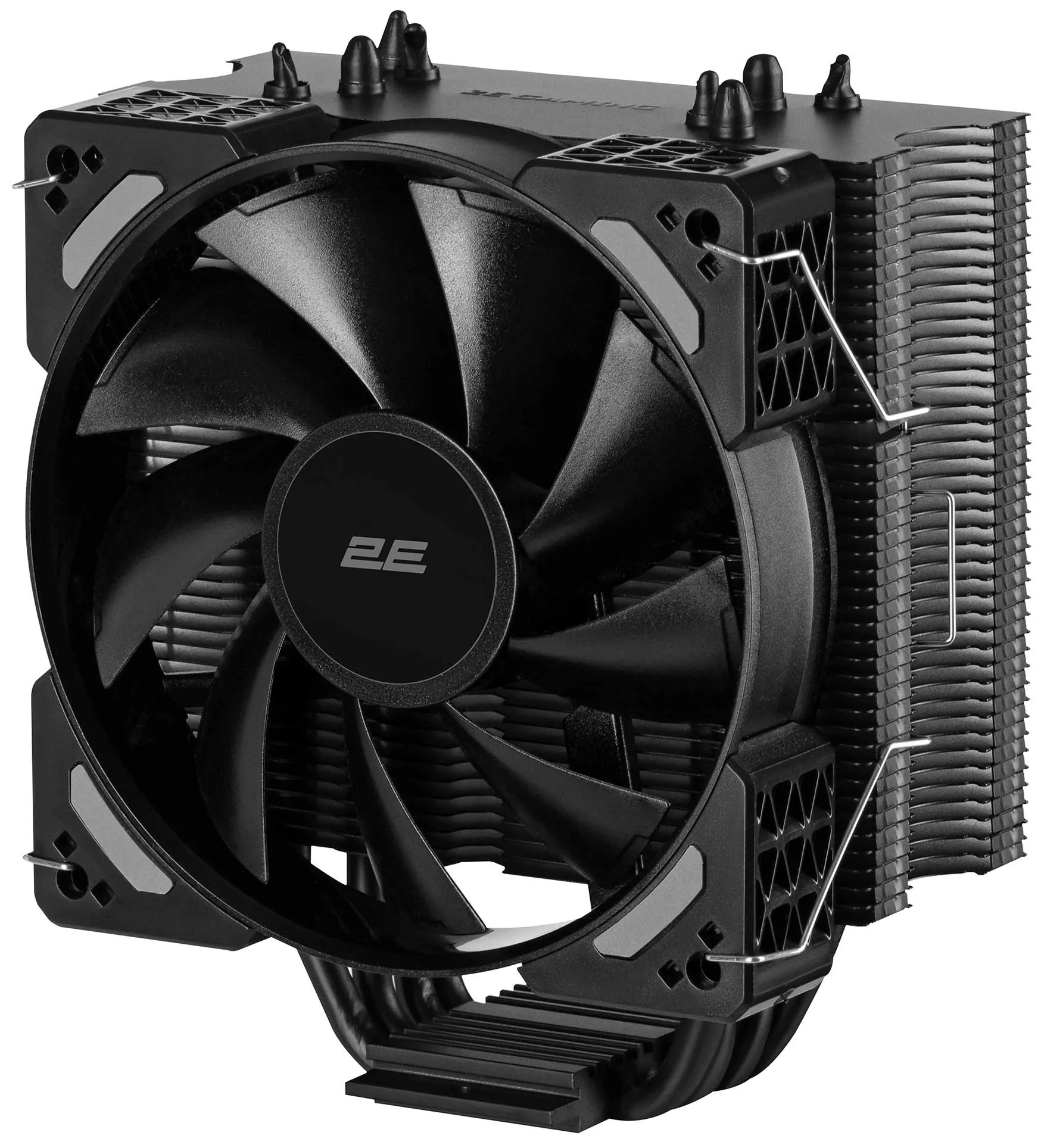

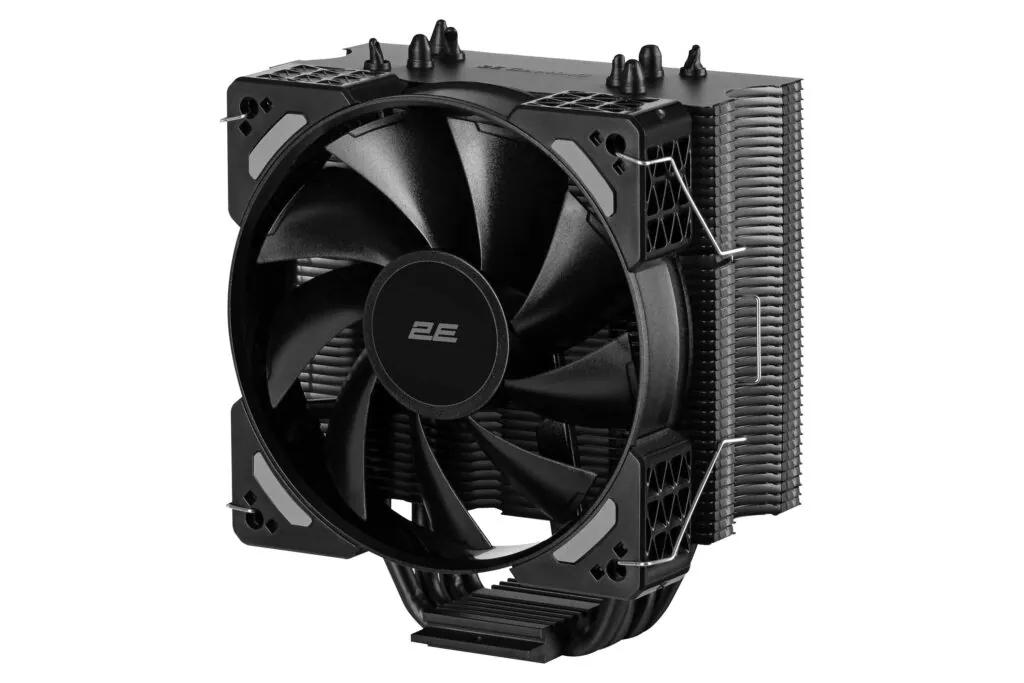

CPU cooler 2E Gaming Air Cool ACN120-S without backlight, with classic tower heatsink design. Compact cooler with quiet 120mm hydraulic bearing fan. A heatsink with four 6mm copper heat pipes that are embedded in the base at a certain distance, which improves cooling efficiency and affects the distribution of airflow. Aluminum heatsink surface with a special black coating with ceramic inclusions, which improves cooling efficiency while guaranteeing a TDP of 180W. Cooler ACN120-S with polished base surface. Direct contact of the heat pipes with the processor using DTH technology improves heat dissipation.
Out of stock
1439₴


Manuals
01

Compatible with modern sockets

Convenient mounting. Easy to install and remove.
INTEL LGA: 115X/1200/1366/1700
AMD: FM1/FM2/AM2/AM2+/AM3/AM3+/AM4
02

Compact size and efficient cooling

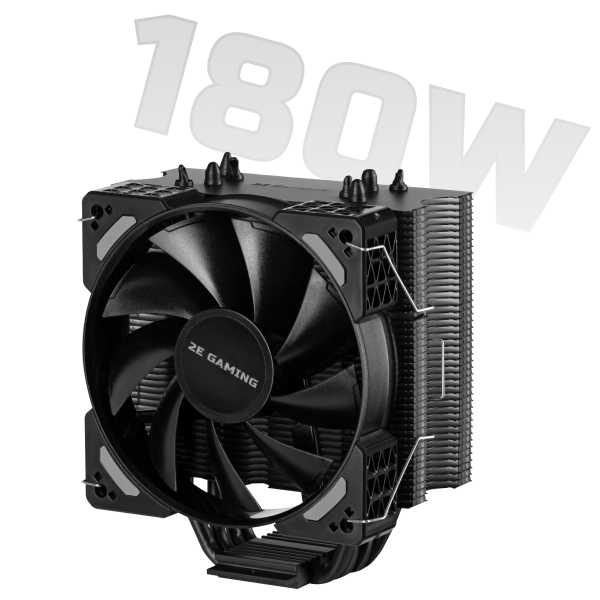

Height: 155mm. The construction does not interfere with system components located on the motherboard. CPU surface heat dissipation rate: 180W.
03

Classic tower heatsink and DTH base design

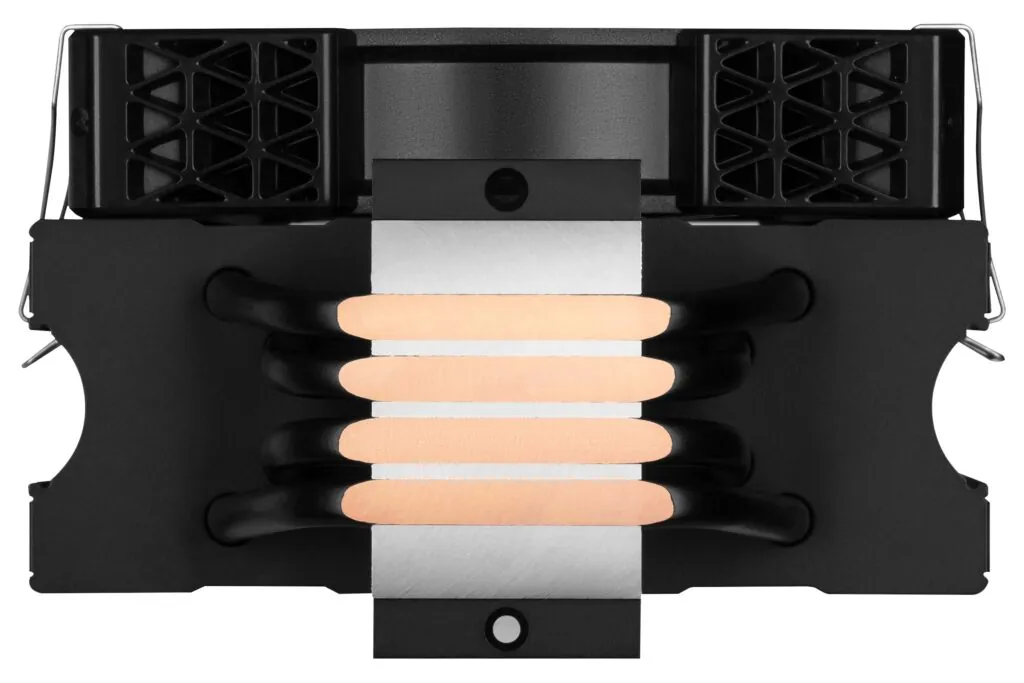

The compact tower shape of the aluminum heatsink with a special black coating containing ceramic particles for active heat dissipation provides effective cooling. Four 6mm copper heatpipes are placed directly on the surface of the base using DTH (Direct Touch Hitpipes) technology.
04

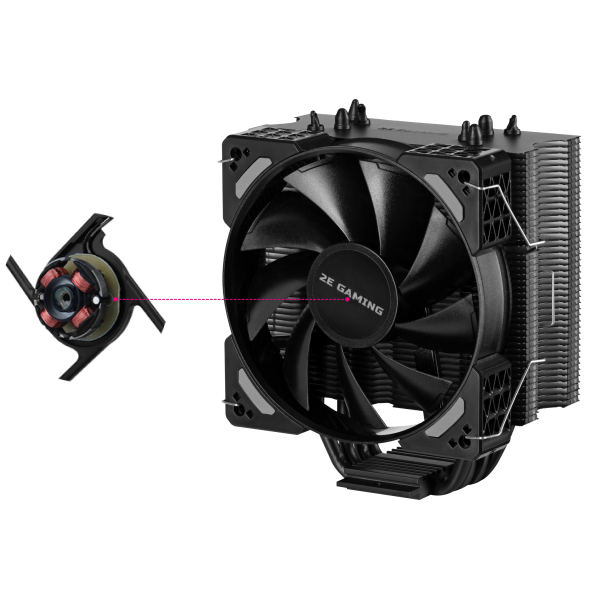

Hydraulic fan bearing

Provides stable and quiet operation, does not overheat at high loads.
05

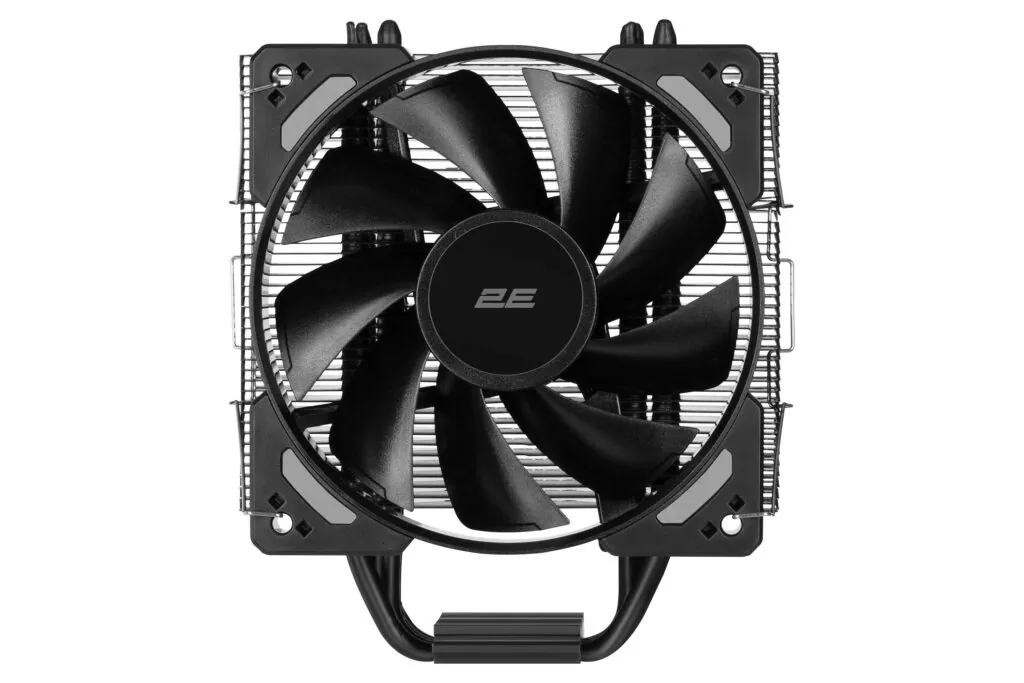

Quiet 17.4-34.8 ±10%dBA fan

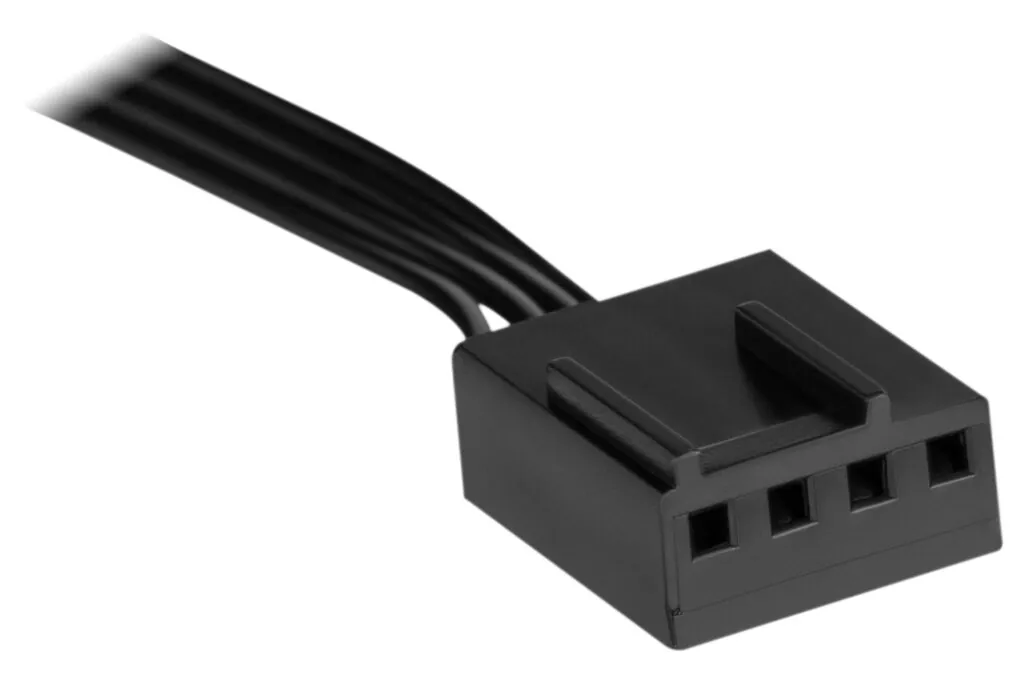

120mm fan has nine notched blades that direct air flows away from the heatsink surface at a speed of 700-1800±10% rpm. Connector: 2510-4pin.
06

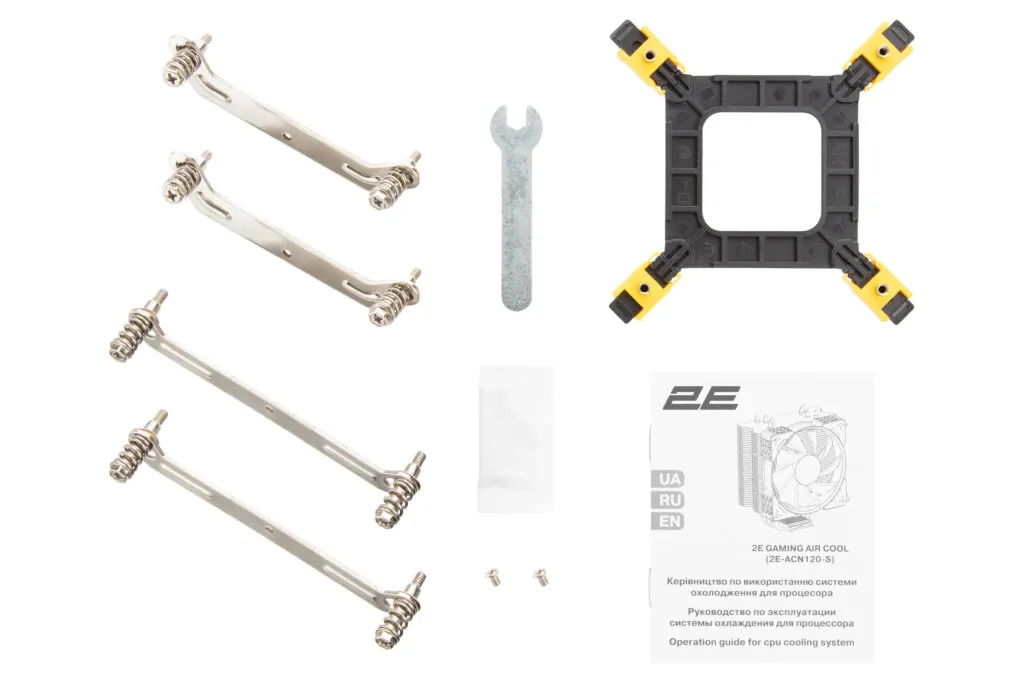

CPU cooler design and mounting kit

  • Quiet 120mm hydraulic bearing fan
  • Base made using DTH (Direct Touch Hitpipes) technology
  • 4x6mm black coated copper heatpipes
  • Compact aluminum heatsink with black coating
  • Convenient mounting

2E Gaming Air Cool ACN120-S 2E-ACN120-S:

Specifications
Where to buy
  • Type
    Active cooler
  • Appointment
    For processor
  • Radiator dimensions, mm
    128x50x155
  • Fan dimensions, mm
    120x120x25
  • Fan productivity
    25.98-62.46±10% CFM
  • Speed, rpm
    700-1800±10%
  • Static pressure
    0.22-1.24±10% mm/H2O
  • Noise level, dB
    17.4-34.8 ±10%
  • Bearing type
    Hydraulic
  • Connector
    2510-4PIN
  • PWM
    Yes
  • Number of blades, pcs
    9
  • Blades color
    Black
  • Radiator material
    Aluminium
  • Number of heat pipes, pcs
    4 (6 mm)
  • Power Supply, V
    12
  • Rated current, A
    0.25±10%
  • Backlight
    Non
  • LGA
    115X/1200/1366/1700
  • AMD
    FM1/FM2/AM2/AM2+/AM3/AM3+/AM4/AM5
  • TDP, W
    180
  • Package contents
    CPU cooling system, fan, brackets, installation kit, wrench, thermal paste, manual, warranty card
  • Dimensions (WxHxD), mm
    128x155x79
  • Manufactured
    China
  • Warranty
    12 months
